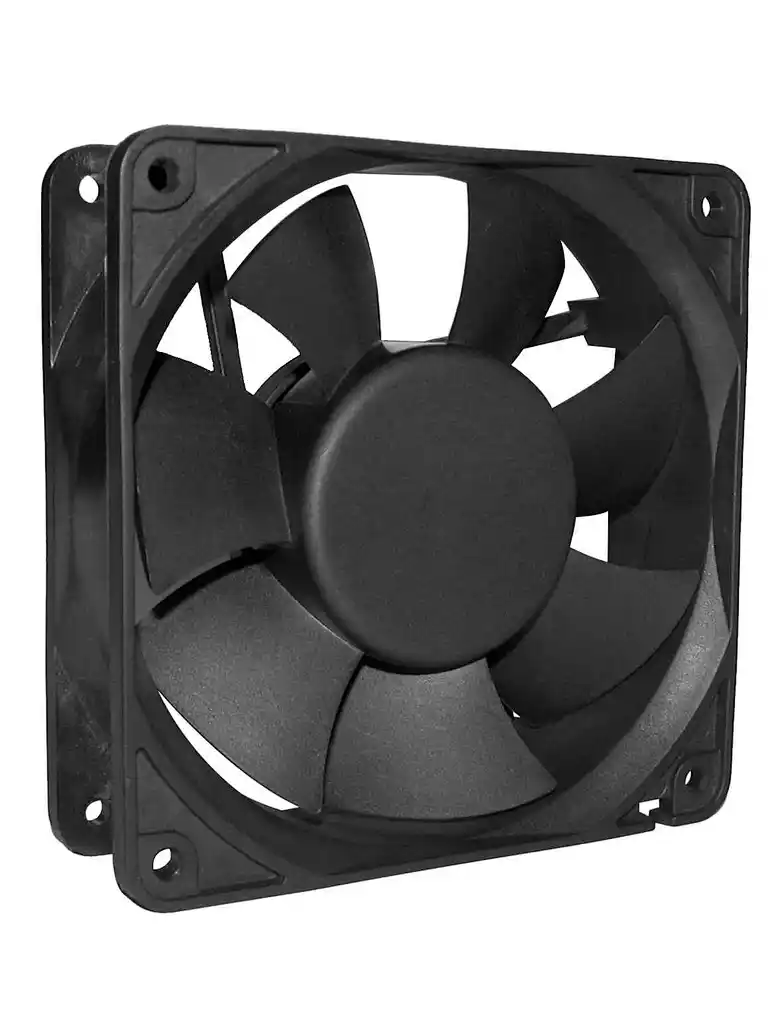

EC Axial Fan-1238
EC-1238
● General Specifications（一般规格）
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
This quietest 120mm fan/120mm industrial fan/cabinet fan 120mm is EC fan or EC axial fan, EC fan(This quietest 120mm fan/120mm industrial fan) is a new variety in the fan industry. It is different from other DC quietest 120mm fan/120mm industrial fan. It can not only use DC voltage to supply power, but also can use AC voltage to supply power. The voltage can be universal from DC 12v, 24v, 48v, to AC 110V, 220V, 380V, no need to add any inverter conversion. All internal components of the motor are DC power supply, built-in DC to AC, rotor position feedback, three-phase AC, permanent magnet, synchronous motor.
