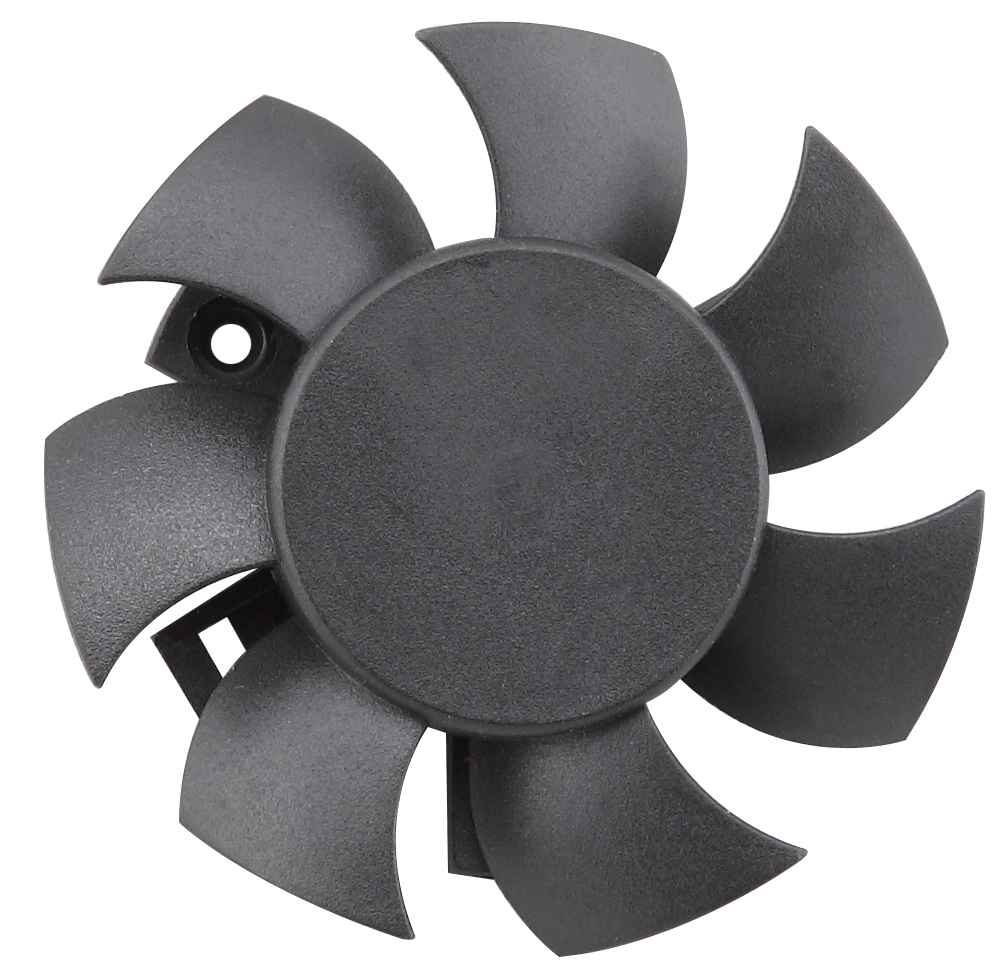

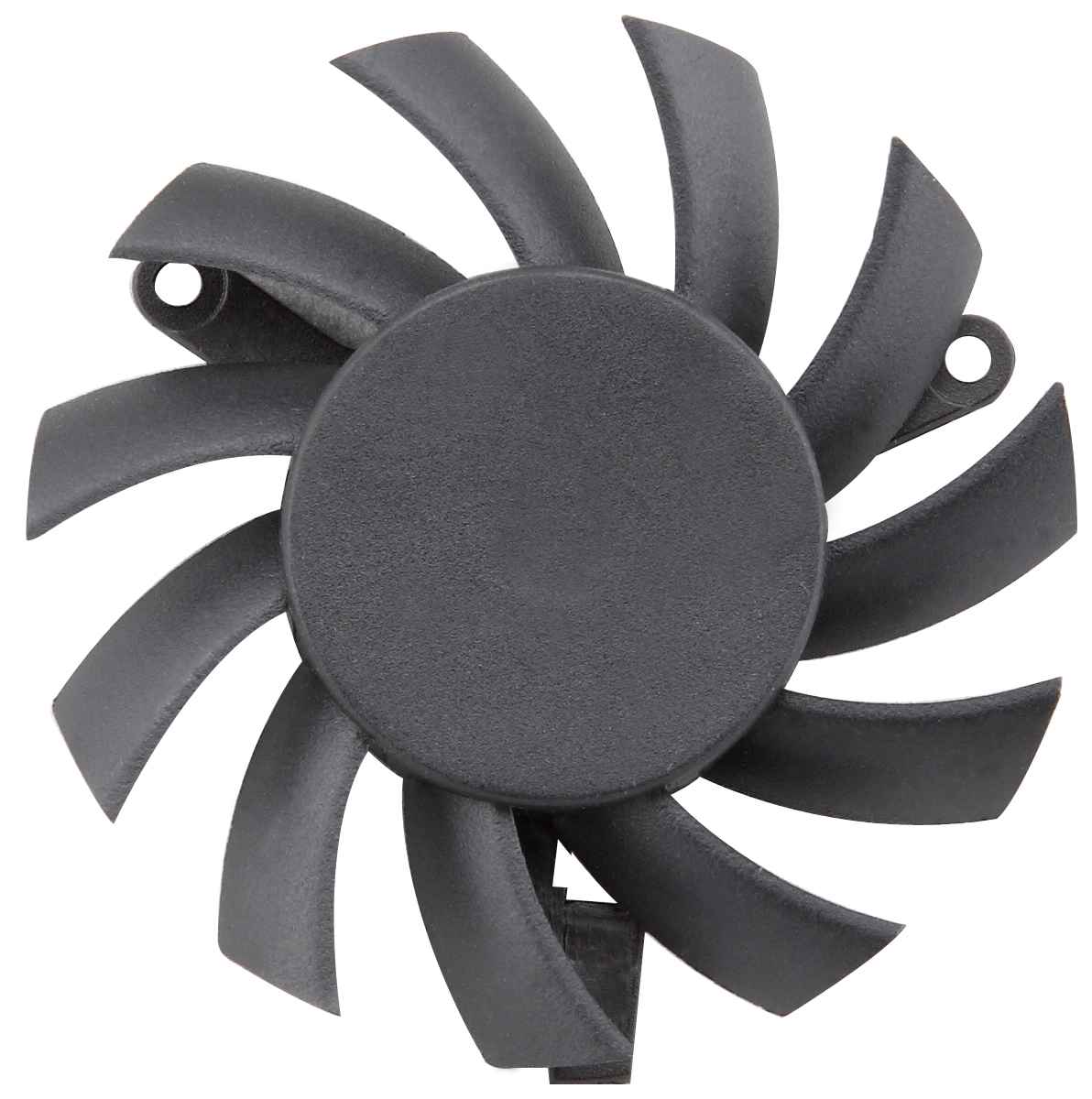

Frameless Fan Bracket fan
Bracket fan
120mm fan including frame and frameless, widely used to pc power supply
Quantity
| (图片） Photos | (尺寸） Size | （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| MM | VDC | VDC | A | RPM | CFM | mmH20 | SDA | g | |||
 | 40X40X10 | SDH4010S/B | Sleeve/ Ball | 5 | 4.5～5.5 | 0.16 | 5400 | - | - | 支架风扇 | 10 |
 | 50X50X10 | SDH5010S/B | Sleeve/ Ball | 12 | 10.8～13.2 | 0.08 | 4500 | - | - | 26.09 | 15 |
 | 60X60X10 | SDH6010S | Sleeve | 12 | 10.8～13.2 | 0.17 | 4200 | - | - | 31.66 | 21 |
 | 90X90X25 | SDH9025S | Sleeve | 12 | 10.8～13.2 | 0.25 | 2100 | - | - | 30.00 | 75 |
 | 90X90X25 | SDH9025S | Sleeve | 12 | 10.8～13.2 | 0.25 | 2500 | - | - | 32.00 | 70 |
 | 120X120X25 | SDH1225S | Sleeve | 12 | 10.8～13.2 | 0.20 | 1700 | - | - | 25.20 | 105 |
The rang of frameless fan from 40mm to 120mm, same as dc axial fan, widely used to power supply/telecom/computer / IT/office equipment.
