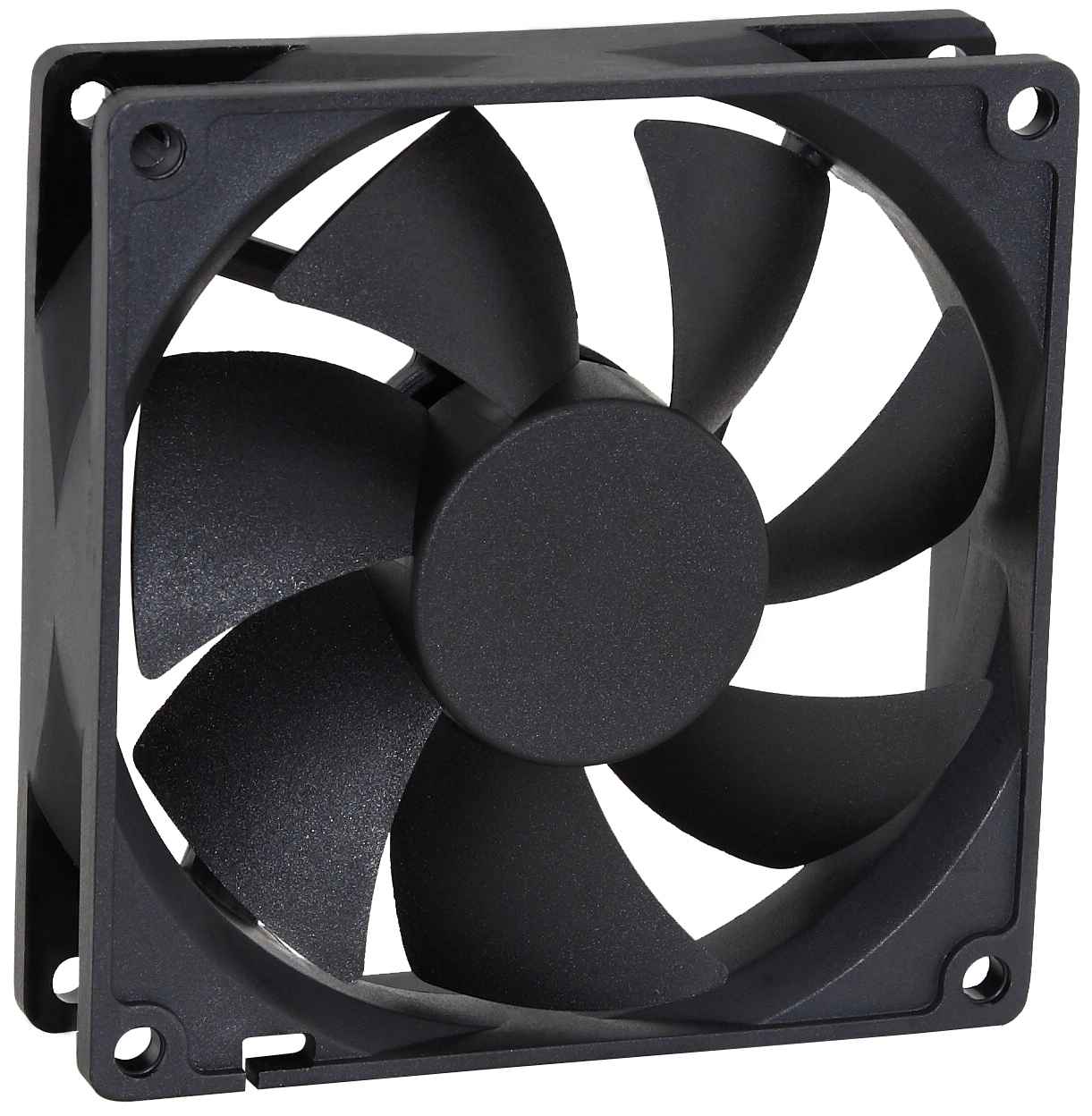

92X92X25                                        dc fans for sale                          DC Axial-Flow Fan Motor

● General Specifications（一般规格）

○ Material:

Frame And Impeller:Thermal Plastic UL 94-0

○ Lead Wires:UL Type

RED Wire Positive(+)

Black Wire Negative(-)

○ Insulation Resistance:10MΩ Or Over With a

DC250V Megger

○ Dielectric Withstand Voltage:AC500V 1S

○ Allowable Ambient Temperature Range:

-10℃～+70℃(Operating)

-40℃～+70℃(Storage)



● Specifications（规格）



（型号） Model	（轴承类型） Bearing Type	（电压） Rated Voltage	（电压范围） Operation Voltage	（电流） Current	（转数） Speed	（风量） Air Flow	（风压） Static Pressure	(噪音） Noise Level	（重量） Weight
		VDC	VDC	A	RPM	CFM	mmH20	dBA	g
SDH9025S	Sleeve	12	10.8～13.2	0.25	2800	54.73	3.04	32.81	85
SDM9025S				0.20	2500	46.46	2.11	28.58
SDL9025S				0.16	2000	39.87	1.67	25.87
SDH9025B	Ball			0.25	2800	54.73	3.04	32.81
SDM9025B				0.20	2500	46.46	2.11	28.58
SDL9025B				0.16	2000	39.87	1.67	25.87
SDH9025S	Sleeve	24	21.6～26.4	0.15	2800	54.73	3.04	32.81
SDM9025S				0.10	2500	46.46	2.11	28.58
SDL9025S				0.07	2000	39.87	1.67	25.87
SDH9025B	Ball			0.15	2800	54.73	3.04	32.81
SDM9025B				0.10	2500	46.46	2.11	28.58
SDL9025B				0.07	2000	39.87	1.67	25.87

All kinds of axial fan dc sale, have the characteristics of"high cost performance","good stability"and"fast delivery". Our axial fan dc in strict accordance with the requirements of ISO-9001 quality management system. At the same time, as a dc axial fan manufacturers, the products have also passed the CE, FCC, 3C and other safety certification industrial fans. The products of axial fan dc 9225 meet the ROHS requirements, ensuring that customers can buy"high cost-effective". axial fan dc to the worldwide, welcome to inquire , let's start cooperation.
