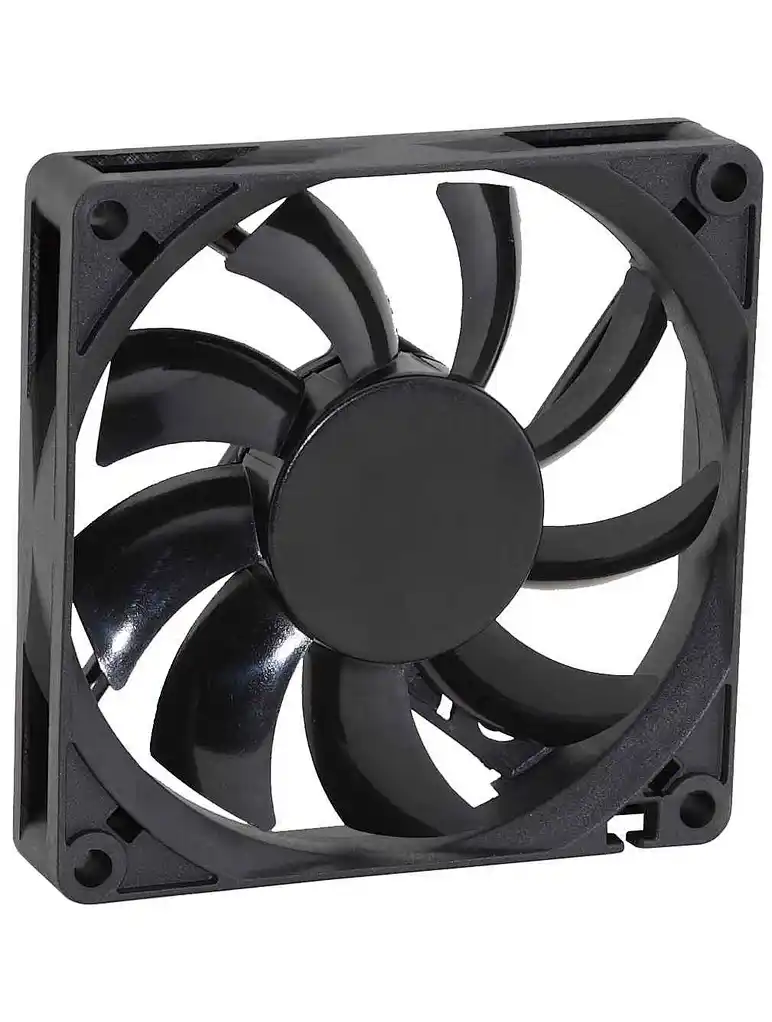

DC Axial Fan 8015
8015
DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
80X80X15 DC Axial-Flow Fan Motor | ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH8015S | Sleeve | 12 | 10.8～13.2 | 0.17 | 3000 | 30.16 | 2.38 | 34.57 | 57 |
| SDM8015S | 0.12 | 2500 | 24.89 | 1.69 | 29.80 | ||||
| SDL8015S | 0.08 | 2000 | 18.99 | 1.03 | 24.15 | ||||
| SDH8015B | Ball | 0.17 | 3000 | 30.16 | 2.38 | 34.57 | |||
| SDM8015B | 0.12 | 2500 | 24.89 | 1.69 | 29.80 | ||||
| SDL8015B | 0.08 | 2000 | 18.99 | 1.03 | 24.15 | ||||
| SDH8015S | Sleeve | 24 | 21.6～26.4 | 0.11 | 3000 | 30.16 | 2.38 | 34.57 | |
| SDM8015S | 0.08 | 2500 | 24.89 | 1.69 | 29.80 | ||||
| SDL8015S | 0.05 | 2000 | 18.99 | 1.03 | 24.15 | ||||
| SDH8015B | Ball | 0.11 | 3000 | 30.16 | 2.38 | 34.57 | |||
| SDM8015B | 0.08 | 2500 | 24.89 | 1.69 | 29.80 | ||||
| SDL8015B | 0.05 | 2000 | 18.99 | 1.03 | 24.15 |
The 80mm fan belongs to the cooling fan industry. the purpose of 80mm fan is to dissipate heat for the heat-generating electronic equipment, and the application range is very wide. This 80mm fan is used in household appliances such as refrigerators, freezers, and air conditioners that we use in our daily lives. 80mm fan also be used to computer.
Advantages of 80mm fan: good speed regulation performance and simple control. Compared with the frequency conversion speed regulation of induction motors, the speed regulation control of 80mm fan brushless DC motors is not only simple, but also has better speed regulation performance.
This 80mm fan, we can make 5v, 12v, 48v per your requirement, the speed of 80mm fan, we also can make more higher.
Advantages of 80mm fan: good speed regulation performance and simple control. Compared with the frequency conversion speed regulation of induction motors, the speed regulation control of 80mm fan brushless DC motors is not only simple, but also has better speed regulation performance.
This 80mm fan, we can make 5v, 12v, 48v per your requirement, the speed of 80mm fan, we also can make more higher.
