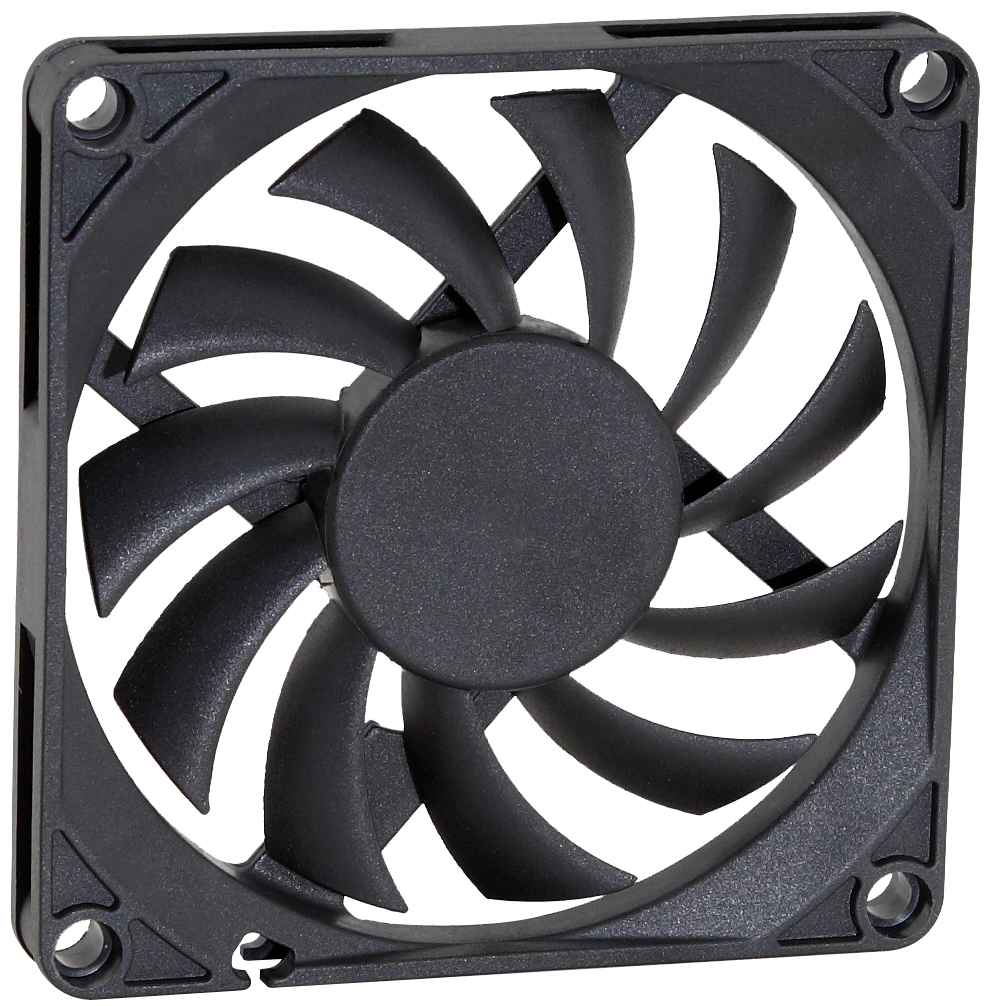

DC Axial Fan 8010
8010
DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
80X80X10 80Fan DC Axial-Flow Fan Motor | ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH8010S | Sleeve | 5 | 4.5～5.5 | 0.35 | 3000 | 23.45 | 1.81 | 30.75 | 43 |
| SDM8010S | 0.25 | 2500 | 19.68 | 1.31 | 26.25 | ||||
| SDL8010S | 0.17 | 2000 | 15.58 | 0.90 | 22.08 | ||||
| SDH8010B | Ball | 0.35 | 3000 | 23.45 | 1.81 | 30.75 | |||
| SDM8010B | 0.25 | 2500 | 19.68 | 1.31 | 26.25 | ||||
| SDL8010B | 0.17 | 2000 | 15.58 | 0.90 | 22.08 | ||||
| SDH8010S | Sleeve | 12 | 10.8～13.2 | 0.24 | 3000 | 23.45 | 1.81 | 30.75 | |
| SDM8010S | 0.18 | 2500 | 19.68 | 1.31 | 26.25 | ||||
| SDL8010S | 0.12 | 2000 | 15.58 | 0.90 | 22.08 | ||||
| SDH8010B | Ball | 0.24 | 3000 | 23.45 | 1.81 | 30.75 | |||
| SDM8010B | 0.18 | 2500 | 19.68 | 1.31 | 26.25 | ||||
| SDL8010B | 0.12 | 2000 | 15.58 | 0.90 | 22.08 |
The 80 fan belongs to the cooling fan industry. the purpose of 80 fan is to dissipate heat for the heat-generating electronic equipment, and the application range is very wide. This 80 fan is used in household appliances such as refrigerators, freezers, and air conditioners that we use in our daily lives. 80 fan also be used to computer.
Advantages of 80 fan: good speed regulation performance and simple control. Compared with the frequency conversion speed regulation of induction motors, the speed regulation control of 80 fan brushless DC motors is not only simple, but also has better speed regulation performance.
This 80 fan, we can make dc 5v, 12v, 24v, 48v per your requirement, for instance, fan 24v dc is very hot. except fan 24v dc, 12v is hot too. India market request much more fan 24v dc, usa market request much more fan 24v dc too. fan 24v dc is popular designs request in China too.
the speed of 80 fan, we also can make more higher.
Advantages of 80 fan: good speed regulation performance and simple control. Compared with the frequency conversion speed regulation of induction motors, the speed regulation control of 80 fan brushless DC motors is not only simple, but also has better speed regulation performance.
This 80 fan, we can make dc 5v, 12v, 24v, 48v per your requirement, for instance, fan 24v dc is very hot. except fan 24v dc, 12v is hot too. India market request much more fan 24v dc, usa market request much more fan 24v dc too. fan 24v dc is popular designs request in China too.
the speed of 80 fan, we also can make more higher.
