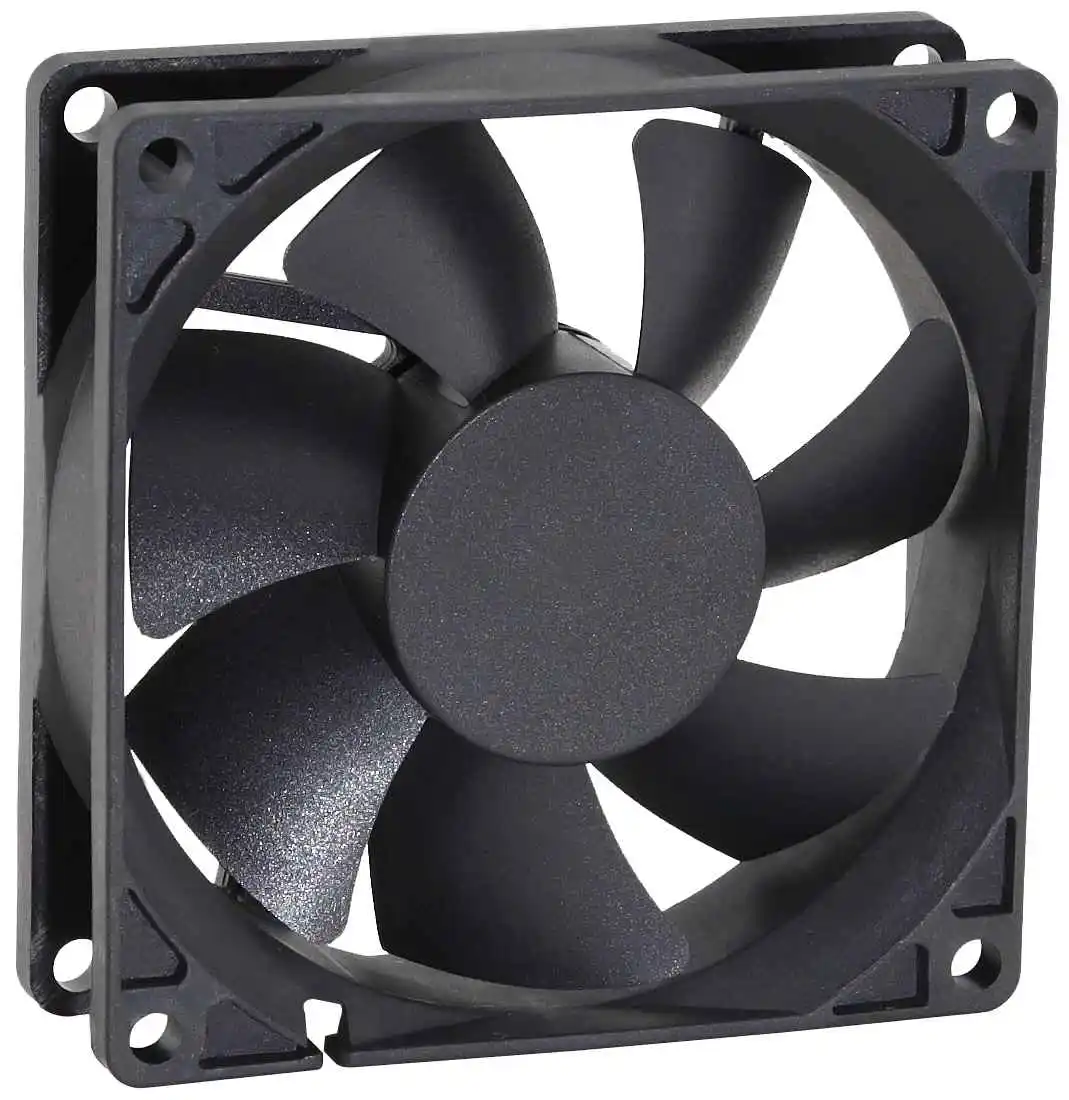

DC Axial Fan 8025
DC -8025
DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
80X80X25 DC Axial-Flow Fan Motor | ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH8025S | Sleeve | 12 | 10.8～13.2 | 0.17 | 3000 | 38.88 | 3.54 | 32.31 | 73 |
| SDM8025S | 0.11 | 2500 | 32.37 | 2.52 | 27.85 | ||||
| SDL8025S | 0.08 | 2000 | 25.64 | 1.64 | 22.05 | ||||
| SDH8025B | Ball | 0.17 | 3000 | 38.88 | 3.54 | 32.31 | |||
| SDM8025B | 0.11 | 2500 | 32.37 | 2.52 | 27.85 | ||||
| SDL8025B | 0.08 | 2000 | 25.64 | 1.64 | 22.05 | ||||
| SDH8025S | Sleeve | 24 | 21.6～26.4 | 0.15 | 3000 | 38.88 | 3.54 | 32.31 | |
| SDM8025S | 0.10 | 2500 | 32.37 | 2.52 | 27.85 | ||||
| SDL8025S | 0.07 | 2000 | 25.64 | 1.64 | 22.05 | ||||
| SDH8025B | Ball | 0.15 | 3000 | 38.88 | 3.54 | 32.31 | |||
| SDM8025B | 0.10 | 2500 | 32.37 | 2.52 | 27.85 | ||||
| SDL8025B | 0.07 | 2000 | 25.64 | 1.64 | 22.05 |
Songlian 80x80x25 12v dc fan are famous for their large air volume, low noise, 80x80x25 12v dc fan with good quality stability and long service life. Songlian is a professional manufacturer that specialized in various 80x80x25 12v dc fan for 3V-380V over 8 years. Our main products include 80x80x25 12v dc fan、DC/AC Blower、EC FAN and High pressure blower( 12V/24V/48V); We can also produce 80x80x25 12v dc fan with different functions such as automatic start, FG/RD signal output, PWM speed regulation, dustproof and waterproof according to customer requirements. Also provide OEM/ ODM service for 80x80x25 12v dc fan.
This cooler has the lowest power consumption of any of our standard air cooler 80x80x25 12v dc fan, making it compatible with all of our temperature controllers. Labeled wiring cables are provided free of charge when purchasing interconnected standard products (thermoelectric cooling components or modules, 80x80x25 12v dc fan temperature controllers and/or power supplies) in the same order. The number of cables included (1-3 pairs) depends on the number of components interconnected 80x80x25 12v dc fan. Welcome friends from all walks of life to come to consult 80x80x25 12v dc fan.
This cooler has the lowest power consumption of any of our standard air cooler 80x80x25 12v dc fan, making it compatible with all of our temperature controllers. Labeled wiring cables are provided free of charge when purchasing interconnected standard products (thermoelectric cooling components or modules, 80x80x25 12v dc fan temperature controllers and/or power supplies) in the same order. The number of cables included (1-3 pairs) depends on the number of components interconnected 80x80x25 12v dc fan. Welcome friends from all walks of life to come to consult 80x80x25 12v dc fan.
