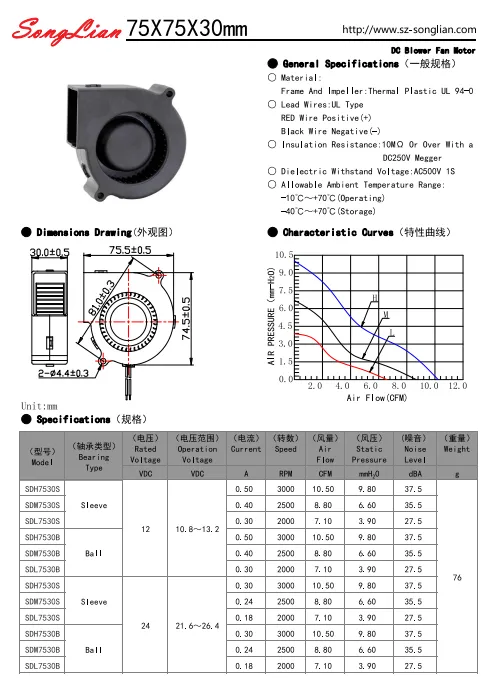

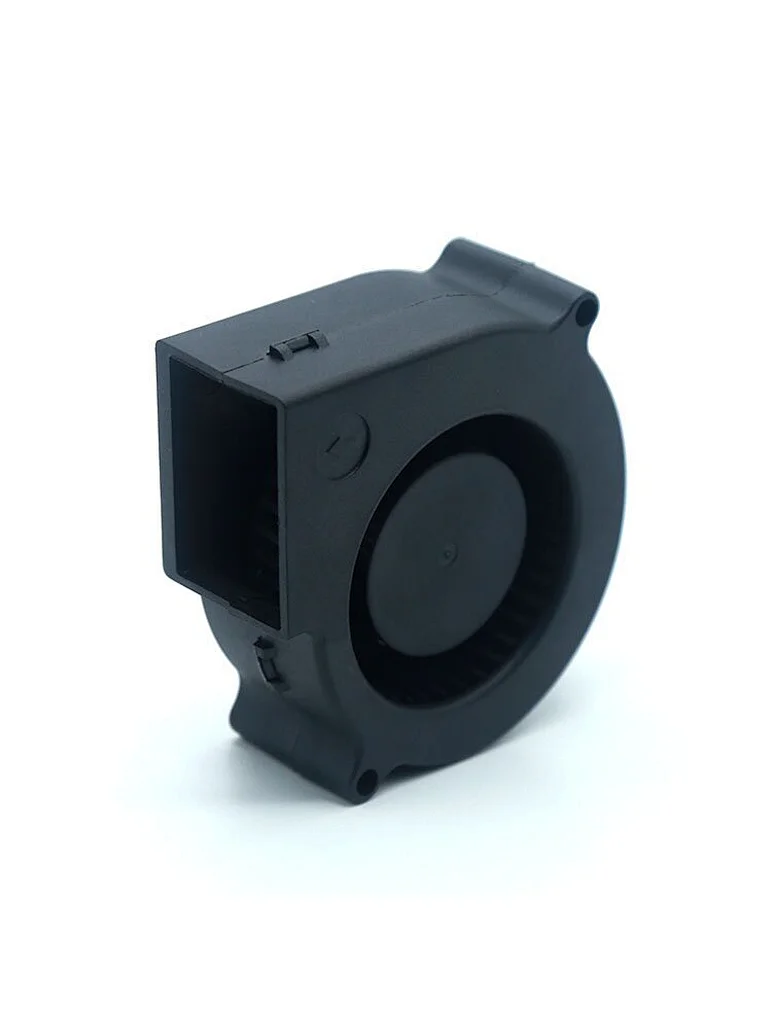

DC Blower 7530
SDH7530B
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
| item | value |
| Warranty | 3 years |
| Certification | ROHS ,FCC, CCC |
| Customized support | OEM |
| Rated Voltage | 12V 24V |
| Place of Origin | Shenzhen |
| Type | DC Blower Fan |
| Brand Name | songlian |
| Model Number | SDH7530S |
| Application | Air Blower |
| Pressure | High Pressure |
| Power Source | Electric Blower |
| Color | Black |
Songlian are reliable industrial dc fan/industrial cooling fans manufactory in shenzhen, produce industrial dc fan/industrial cooling fans from 20mm to 200mm. and the voltage of industrial dc fan/industrial cooling fans from 3v to 48v. the bearing of industrial dc fan/industrial cooling fans have ball, sleeve and hydraulic. The thinckness of industrial dc fan/industrial cooling fans can reach to 38mm and 50mm, the speed of industrial dc fan/industrial cooling fans can reach to below 3000RPM, at the same time, its can over to 8000RPM.
As the professional industrial dc fan/industrial cooling fans factory, our monthly production capacity of up to 800000 units. To be the leading industrial dc fan/industrial cooling fans supplier in shenzhen, we adhered to the belief of"customer first, quality first, people-oriented", and truly achieved"think what customers think and what customers need urgently". Any questions of industrial dc fan/industrial cooling fans, freely contact us.
