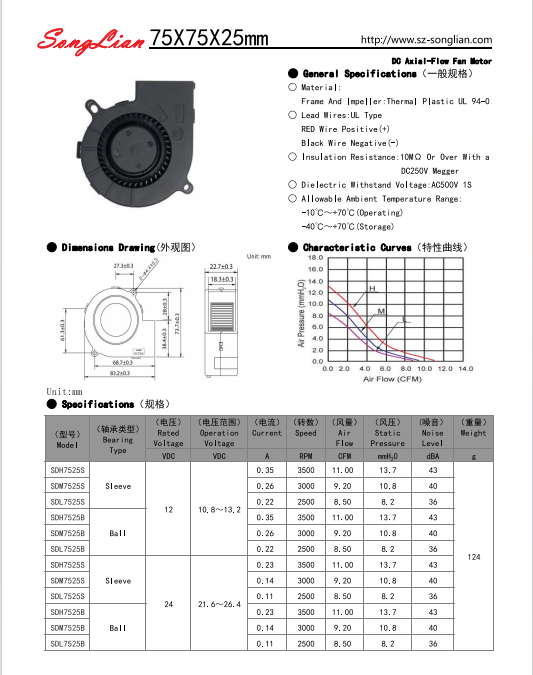

DC Blower 7525
SDH7525B
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
As an electronic component, axial fan dc is used in telecom/power supply/computer/ IT/office equipment. Axial fan dc is hot in the recent years, although the price of axial fan dc is increasing in recent years, the needs of axial fan dc needs increasing yearly.
The axial fan dc uses DC voltage to supply power, which is safer and has low power consumption. The air inlet and outlet directions of the axial fan dc are applied to the straight-in and straight-out air duct on the same axis. Relatively speaking, the air volume is large, and it can quickly take away heat in a large area .
This axial fan dc, we can make sleeve and double ball bearing per your requirement, double ball bearing fan advantages is that the axial fan dc life is higher than sleeve bearing, between 50000hrs to 100000hrs.
The axial fan dc uses DC voltage to supply power, which is safer and has low power consumption. The air inlet and outlet directions of the axial fan dc are applied to the straight-in and straight-out air duct on the same axis. Relatively speaking, the air volume is large, and it can quickly take away heat in a large area .
This axial fan dc, we can make sleeve and double ball bearing per your requirement, double ball bearing fan advantages is that the axial fan dc life is higher than sleeve bearing, between 50000hrs to 100000hrs.
