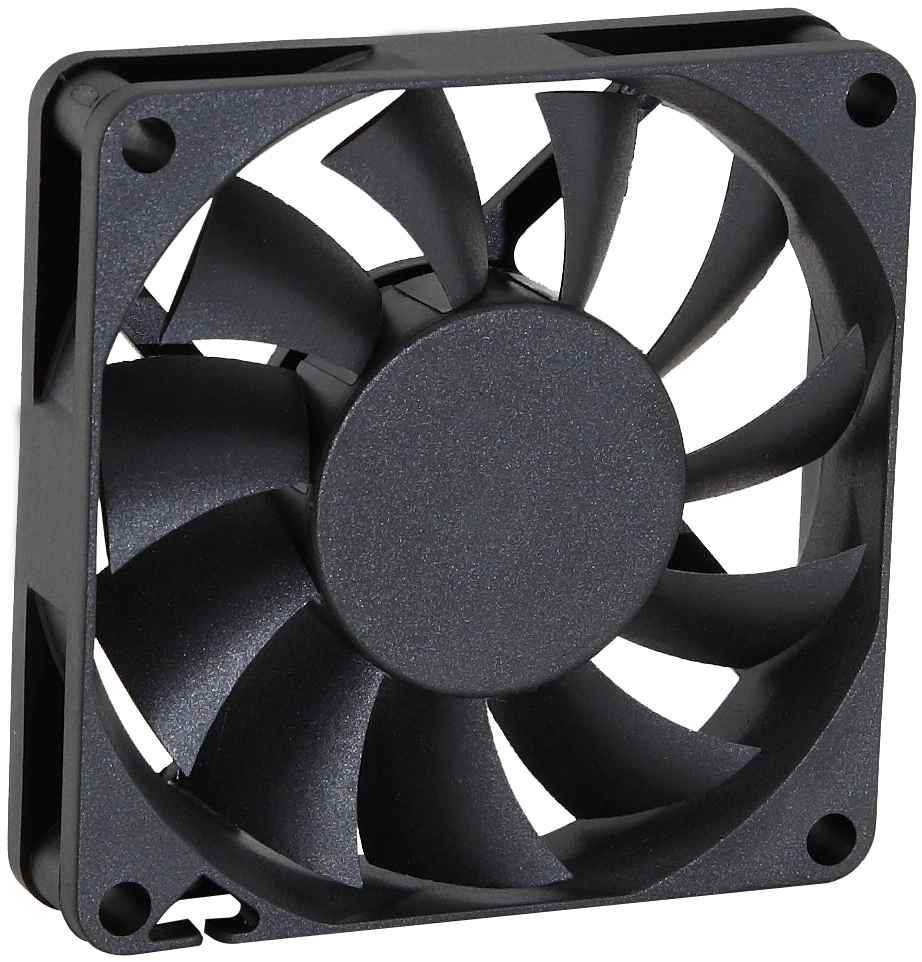

DC Axial Fan 7015
7015
DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
70X70X15 DC Axial-Flow Fan Motor | ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH7015S | Sleeve | 12 | 10.8～13.2 | 0.30 | 4000 | 34.18 | 4.03 | 31.66 | 48 |
| SDM7015S | 0.25 | 3600 | 29.40 | 3.53 | 31.08 | ||||
| SDL7015S | 0.20 | 3000 | 24.42 | 2.62 | 27.20 | ||||
| SDH7015B | Ball | 0.30 | 4000 | 34.18 | 4.03 | 31.66 | |||
| SDM7015B | 0.25 | 3600 | 29.40 | 3.53 | 31.08 | ||||
| SDL7015B | 0.20 | 3000 | 24.42 | 2.62 | 27.20 | ||||
| SDH7015S | Sleeve | 24 | 21.6～26.4 | 0.14 | 4000 | 34.18 | 4.03 | 31.66 | |
| SDM7015S | 0.11 | 3600 | 29.40 | 3.53 | 31.08 | ||||
| SDL7015S | 0.08 | 3000 | 24.42 | 2.62 | 27.20 | ||||
| SDH7015B | Ball | 0.14 | 4000 | 34.18 | 4.03 | 31.66 | |||
| SDM7015B | 0.11 | 3600 | 29.40 | 3.53 | 31.08 | ||||
| SDL7015B | 0.08 | 3000 | 24.42 | 2.62 | 27.20 |
The dust proof fan belongs to dc brushless fans industry. the purpose of dust proof fan is to dissipate heat for the heat-generating electronic equipment, and the application range is very wide. This dust proof fan is used in household appliances such as refrigerators, freezers, and air conditioners that we use in our daily lives. dust proof fan also be used to computer.
Advantages of dust proof fan: good speed regulation performance and simple control. Compared with the frequency conversion speed regulation of induction motors, the speed regulation control of dust proof fan brushless DC motors is not only simple, but also has better speed regulation performance.
This dust proof fan, we can make dc 5v, 12v, 24v, 48v per your requirement,
the speed of dust proof fan, we also can make more higher.
Advantages of dust proof fan: good speed regulation performance and simple control. Compared with the frequency conversion speed regulation of induction motors, the speed regulation control of dust proof fan brushless DC motors is not only simple, but also has better speed regulation performance.
This dust proof fan, we can make dc 5v, 12v, 24v, 48v per your requirement,
the speed of dust proof fan, we also can make more higher.
