DC Axial Fan 6015
6015

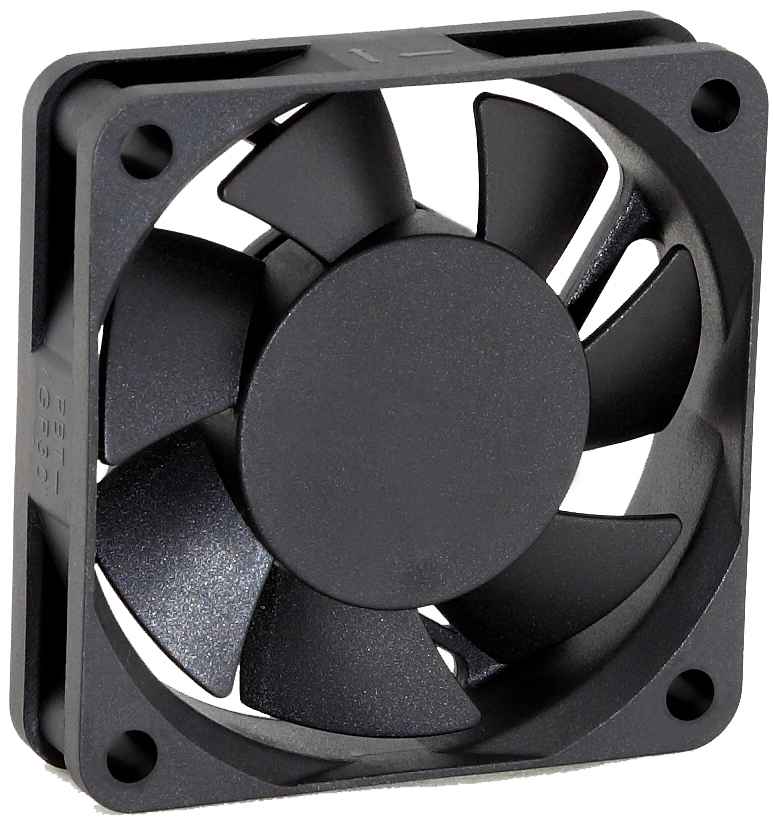

DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
60X60X15 DC Axial-Flow Fan Motor | ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH6015S | Sleeve | 5 | 4.5～5.5 | 0.26 | 4000 | 19.83 | 2.35 | 34.63 | 33 |
| SDM6015S | 0.20 | 3500 | 17.58 | 1.85 | 30.69 | ||||
| SDL6015S | 0.14 | 3000 | 14.67 | 1.27 | 28.54 | ||||
| SDH6015B | Ball | 0.26 | 4000 | 19.83 | 2.35 | 34.63 | |||
| SDM6015B | 0.20 | 3500 | 17.58 | 1.85 | 30.69 | ||||
| SDL6015B | 0.14 | 3000 | 14.67 | 1.27 | 28.54 | ||||
| SDH6015S | Sleeve | 24 | 21.6～26.4 | 0.30 | 4000 | 19.83 | 2.35 | 34.63 | |
| SDM6015S | 0.13 | 3500 | 17.58 | 1.85 | 30.69 | ||||
| SDL6015S | 0.22 | 3000 | 14.67 | 1.27 | 28.54 | ||||
| SDH6015B | Ball | 0.30 | 4000 | 19.83 | 2.35 | 34.63 | |||
| SDM6015B | 0.26 | 3500 | 17.58 | 1.85 | 30.69 | ||||
| SDL6015B | 0.22 | 3000 | 14.67 | 1.27 | 28.54 |
Songlianac silent fan are famous for their large air volume, low noise, good quality stability and long service life. Songlian is a professional manufacturer that specialized in variousac silent fan for 3V-380V over 8 years. Our main products includeac silent fan、DC/AC Blower、EC FAN and High pressure blower( 12V/24V/48V); We can also produceac silent fan with different functions such as automatic start, FG/RD signal output, PWM speed regulation, dustproof and waterproof according to customer requirements silent fan. Also provide OEM/ ODM servicesac silent fan.
This silent fan has the lowest power consumption of any of our standard air coolers silent fan, making it compatible with all of our temperature controllers. Labeled wiring cables are provided free of charge when purchasing interconnected standard products (thermoelectric cooling components or modules,silent fan temperature controllers and/or power supplies) in the same order. The number of cables included (1-3 pairs) depends on the number of components interconnectedac silent fan. Welcome friends to inquiry our silent fan.
This silent fan has the lowest power consumption of any of our standard air coolers silent fan, making it compatible with all of our temperature controllers. Labeled wiring cables are provided free of charge when purchasing interconnected standard products (thermoelectric cooling components or modules,silent fan temperature controllers and/or power supplies) in the same order. The number of cables included (1-3 pairs) depends on the number of components interconnectedac silent fan. Welcome friends to inquiry our silent fan.
