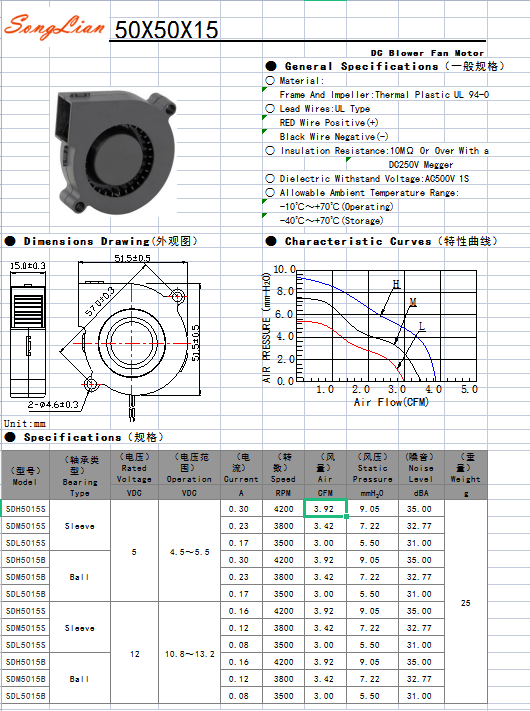

DC Blower 5015
SDH5015S/B
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
| item | value |
| Type | Centrifugal Fan |
| Electric Current Type | DC |
| Blade Material | Plastic |
| Mounting | FREE STANDING |
| Place of Origin | China |
| Shenzhen | |
| Brand Name | SONGLIAN |
| Model Number | SDH5015S, SDM5015S, SDL5015S, SDH5015B, SDM5015B, SDL5015B |
| Voltage | 5V/12V |
| Warranty | 3 years |
| After-sales Service Provided | Online support |
| Certification | CE ROHS |
| Size | 50x50x15mm |
| Bearing Type | Sleeve / Ball |
| Color | Black |
| Current | 0.17-0.3A |
| Noise Level | 29.39-36.42dBA |
| Static pressure | 2.25-4.58mmH2O |
| Other name | DC Axial-Flow Fan Motor |
| Material | Thermal Plastic 94-0 |
Songlian are reliable industrial dc fan/industrial cooling fans manufactory in shenzhen, produce industrial dc fan/industrial cooling fans from 20mm to 200mm. and the voltage of industrial dc fan/industrial cooling fans from 3v to 48v. the bearing of industrial dc fan/industrial cooling fans have ball, sleeve and hydraulic. The thinckness of industrial dc fan/industrial cooling fans can reach to 38mm and 50mm, the speed of industrial dc fan/industrial cooling fans can reach to below 3000RPM, at the same time, its can over to 8000RPM.
As the professional industrial dc fan/industrial cooling fans factory, our monthly production capacity of up to 800000 units. To be the leading industrial dc fan/industrial cooling fans supplier in shenzhen, we adhered to the belief of"customer first, quality first, people-oriented", and truly achieved"think what customers think and what customers need urgently". Any questions of industrial dc fan/industrial cooling fans, freely contact us.
