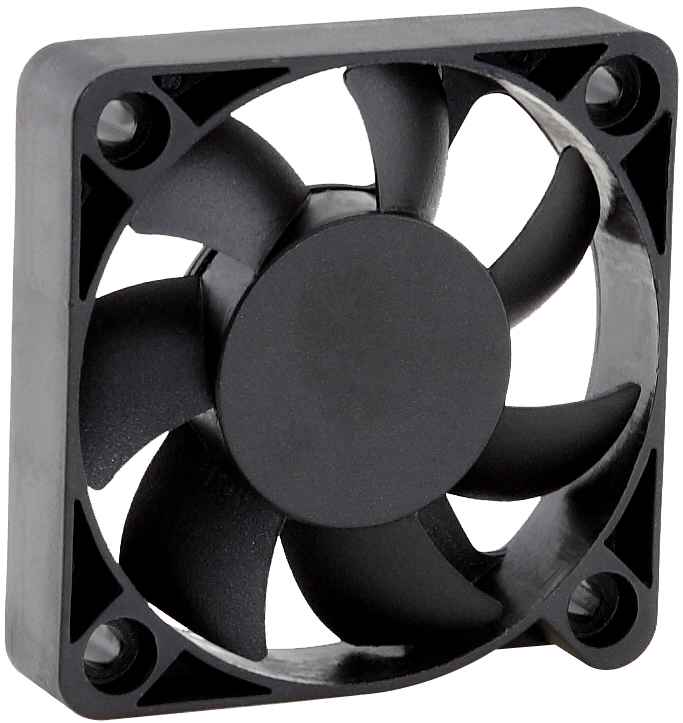

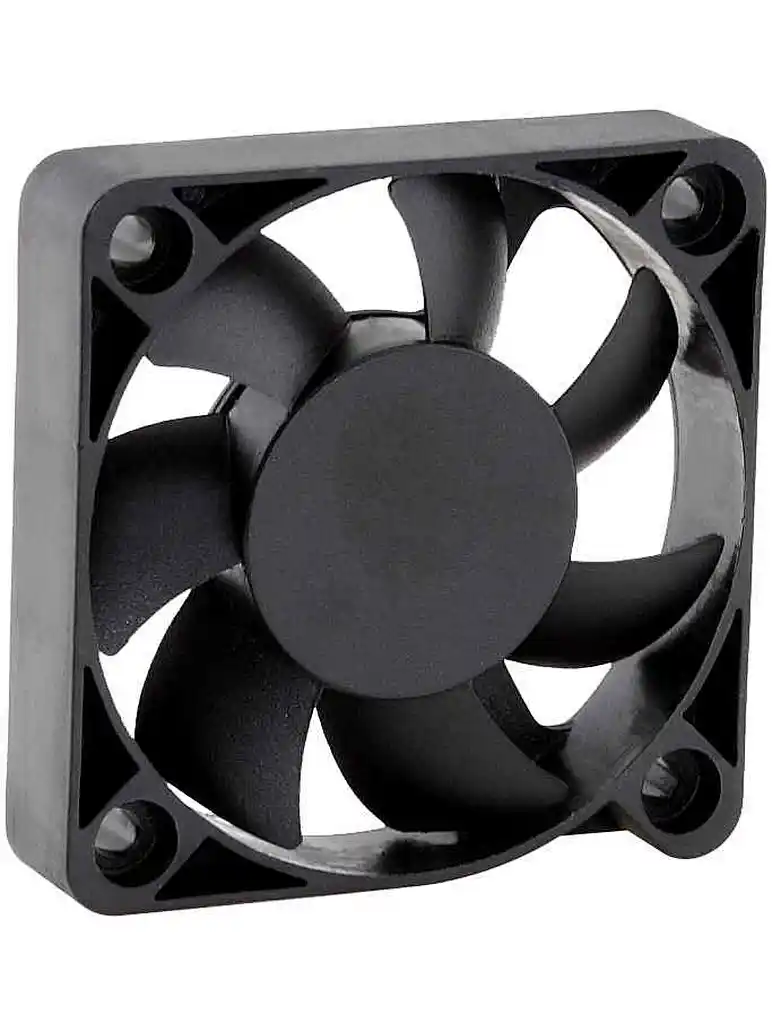

DC Axial Fan 5010
5010
DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
40X40X20 DC Axial-Flow Fan Motor | ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH5010S | Sleeve | 5 | 4.5～5.5 | 0.25 | 5000 | 10.43 | 2.52 | 28.44 | 20 |
| SDM5010S | 0.20 | 4500 | 9.42 | 2.27 | 26.09 | ||||
| SDL5010S | 0.15 | 3500 | 7.30 | 1.77 | 20.82 | ||||
| SDH5010B | Ball | 0.25 | 5000 | 10.43 | 2.52 | 28.44 | |||
| SDM5010B | 0.20 | 4500 | 9.42 | 2.27 | 26.09 | ||||
| SDL5010B | 0.15 | 3500 | 7.30 | 1.77 | 20.82 | ||||
| SDH5010S | Sleeve | 12 | 10.8～13.2 | 0.16 | 5000 | 10.43 | 2.52 | 28.44 | |
| SDM5010S | 0.12 | 4500 | 9.42 | 2.27 | 26.09 | ||||
| SDL5010S | 0.08 | 3500 | 7.30 | 1.77 | 20.82 | ||||
| SDH5010B | Ball | 0.16 | 5000 | 10.43 | 2.52 | 28.44 | |||
| SDM5010B | 0.12 | 4500 | 9.42 | 2.27 | 26.09 | ||||
| SDL5010B | 0.08 | 3500 | 7.30 | 1.77 | 20.82 |
Songlianac dc centrifugal fan are famous for their large air volume, low noise, good quality stability and long service life. Songlian dc centrifugal fan is a professional manufacturer that specialized in variousac dc centrifugal fan for 3V-380V over 8 years. Our main products includeac dc centrifugal fan、DC/AC Blower、EC FAN and High pressure blower( 12V/24V/48V); We can also produceac dc centrifugal fan with different functions such as automatic start, FG/RD signal output, PWM speed regulation, dustproof and waterproof according to customer requirements. Also provide OEM/ ODM servicesac dc centrifugal fan.
This cooler has the lowest power consumption of any of our standard air coolersac dc centrifugal fan, making it compatible with all of our temperature controllers. Labeled wiring cables are provided free of charge when purchasing interconnected standard products (thermoelectric cooling components or modules,ac dc centrifugal fan temperature controllers and/or power supplies) in the same order. The number of cables included (1-3 pairs) depends on the number of components interconnectedac dc centrifugal fan. Welcome friends from all walks of life to come to consult and cooperate dc centrifugal fan.
This cooler has the lowest power consumption of any of our standard air coolersac dc centrifugal fan, making it compatible with all of our temperature controllers. Labeled wiring cables are provided free of charge when purchasing interconnected standard products (thermoelectric cooling components or modules,ac dc centrifugal fan temperature controllers and/or power supplies) in the same order. The number of cables included (1-3 pairs) depends on the number of components interconnectedac dc centrifugal fan. Welcome friends from all walks of life to come to consult and cooperate dc centrifugal fan.
