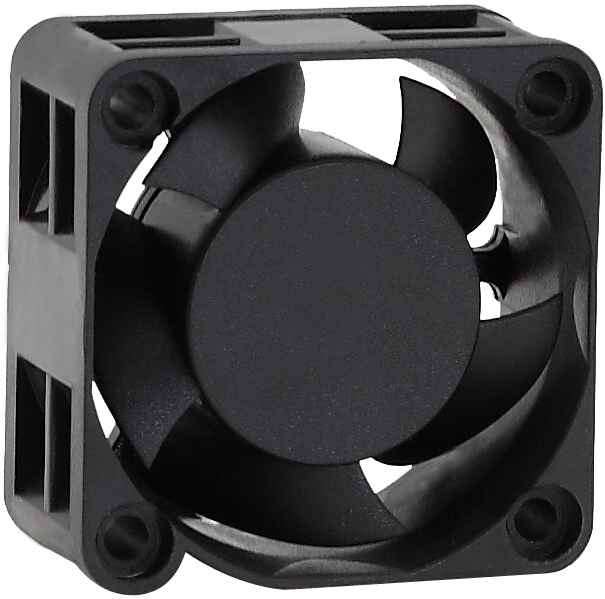

DC Axial Fan 4020
SDH4020B
DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
40X40X20 DC Axial-Flow Fan Motor | ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH4020S | Sleeve | 5 | 4.5～5.5 | 0.26 | 7500 | 8.60 | 5.58 | 33.60 | 23 |
| SDM4020S | 0.20 | 6200 | 7.10 | 3.98 | 29.07 | ||||
| SDL4020S | 0.14 | 5000 | 5.70 | 2.54 | 23.46 | ||||
| SDH4020B | Ball | 0.26 | 7500 | 8.60 | 5.58 | 33.60 | |||
| SDM4020B | 0.20 | 6200 | 7.10 | 3.98 | 29.07 | ||||
| SDL4020B | 0.14 | 5000 | 5.70 | 2.54 | 23.46 | ||||
| SDH4020S | Sleeve | 12 | 10.8～13.2 | 0.15 | 7500 | 8.60 | 5.58 | 33.60 | |
| SDM4020S | 0.11 | 6200 | 7.10 | 3.98 | 29.07 | ||||
| SDL4020S | 0.07 | 5000 | 5.70 | 2.54 | 23.46 | ||||
| SDH4020B | Ball | 0.15 | 7500 | 8.60 | 5.58 | 33.60 | |||
| SDM4020B | 0.11 | 6200 | 7.10 | 3.98 | 29.07 | ||||
| SDL4020B | 0.07 | 5000 | 5.70 | 2.54 | 23.46 | ||||
| Notes: Specifications Subject To Change Without Notice | |||||||||
