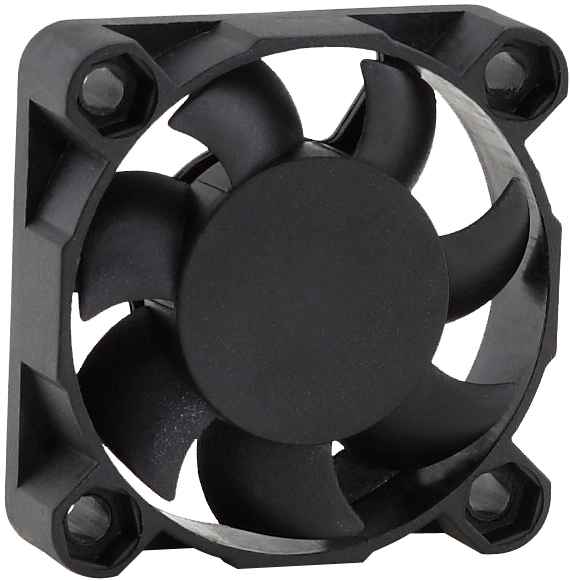

DC Axial Fan 4010
4010
DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
40X40X10 DC Axial-Flow Fan Motor| ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH4010S | Sleeve | 5 | 4.5～5.5 | 0.24 | 6000 | 6.40 | 3.31 | 26.26 | 17 |
| SDM4010S | 0.18 | 5400 | 5.62 | 2.91 | 24.87 | ||||
| SDL4010S | 0.12 | 4200 | 4.48 | 2.32 | 21.13 | ||||
| SDH4010B | Ball | 0.24 | 6000 | 6.40 | 3.31 | 26.26 | |||
| SDM4010B | 0.18 | 5400 | 5.62 | 2.91 | 24.87 | ||||
| SDL4010B | 0.12 | 4200 | 4.48 | 2.32 | 21.13 | ||||
| SDH4010S | Sleeve | 12 | 10.8～13.2 | 0.10 | 6000 | 6.40 | 3.31 | 26.26 | |
| SDM4010S | 0.08 | 5400 | 5.62 | 2.91 | 24.87 | ||||
| SDL4010S | 0.06 | 4200 | 4.48 | 2.32 | 21.13 | ||||
| SDH4010B | Ball | 0.10 | 6000 | 6.40 | 3.31 | 26.26 | |||
| SDM4010B | 0.08 | 5400 | 5.62 | 2.91 | 24.87 | ||||
| SDL4010B | 0.06 | 4200 | 4.48 | 2.32 | 20.26 |
Songlian are reliable industrial dc fan/industrial cooling fans manufactory in shenzhen, produce industrial dc fan/industrial cooling fans from 20mm to 200mm. and the voltage of industrial dc fan/industrial cooling fans from 3v to 48v. the bearing of industrial dc fan/industrial cooling fans have ball, sleeve and hydraulic. The thinckness of industrial dc fan/industrial cooling fans can reach to 38mm and 50mm, the speed of industrial dc fan/industrial cooling fans can reach to below 3000RPM, at the same time, its can over to 8000RPM.
As the professional industrial dc fan/industrial cooling fans factory, our monthly production capacity of up to 800000 units. To be the leading industrial dc fan/industrial cooling fans supplier in shenzhen, we adhered to the belief of"customer first, quality first, people-oriented", and truly achieved"think what customers think and what customers need urgently". Any questions of industrial dc fan/industrial cooling fans, freely contact us.
As the professional industrial dc fan/industrial cooling fans factory, our monthly production capacity of up to 800000 units. To be the leading industrial dc fan/industrial cooling fans supplier in shenzhen, we adhered to the belief of"customer first, quality first, people-oriented", and truly achieved"think what customers think and what customers need urgently". Any questions of industrial dc fan/industrial cooling fans, freely contact us.
