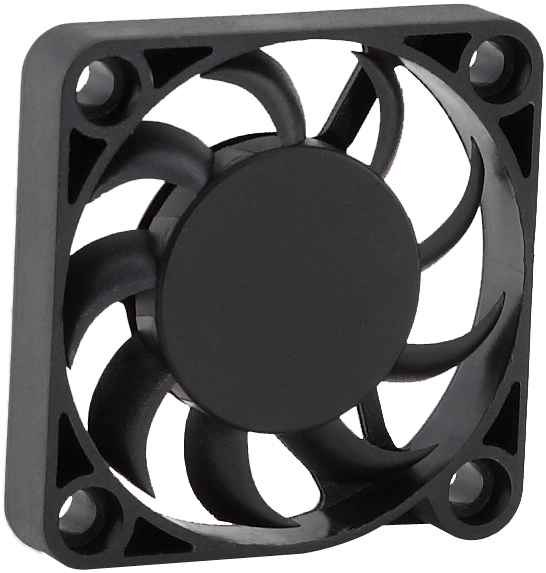

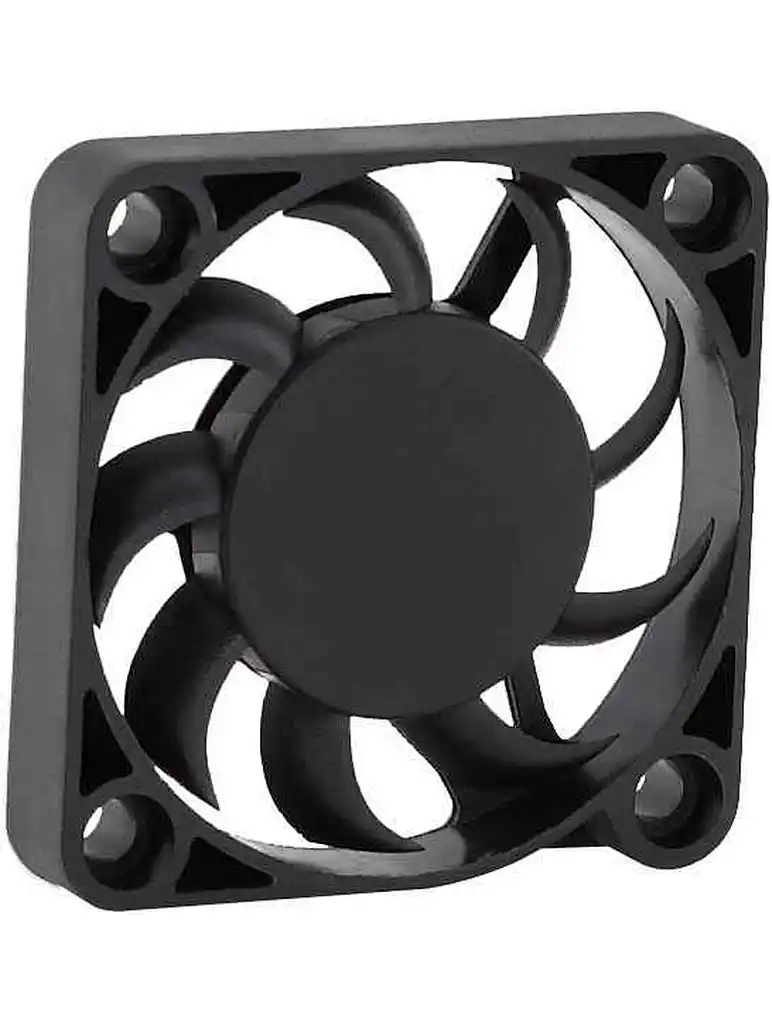

DC Axial Fan 4007
4007
DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
40X40X07 DC Axial-Flow Fan Motor| ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH4007S | Sleeve | 5 | 4.5-5.5 | 0.26 | 7000 | 6.07 | 3.03 | 31.59 | 8.5 |
| SDM4007S | 0.20 | 6000 | 5.20 | 2.60 | 27.08 | ||||
| SDL4007S | 0.12 | 5000 | 4.34 | 2.17 | 22.57 | ||||
| SDH4007S | 12 | 10.8-13.2 | 0.13 | 7000 | 6.07 | 3.03 | 31.59 | ||
| SDM4007S | 0.10 | 6000 | 5.20 | 2.60 | 27.08 | ||||
| SDL4007S | 0.07 | 5000 | 4.34 | 2.17 | 22.57 |
Songlian are reliable axial fan industrial manufactory in shenzhen, produce axial fan industrial with high volume low speed fan. and the voltage of axial fan industrial from 3v to 48v. the bearing of axial fan industrial have ball, sleeve and hydraulic. The thinckness of axial fan industrial can reach to 38mm and 50mm, the speed of axial fan industrial cooling fans can reach to below 3000RPM, at the same time, its can over to 8000RPM.
As the professional axial fan industrial factory, our monthly production capacity of up to 800000 units. To be the leading axial fan industrial supplier in shenzhen, we adhered to the belief of"customer first, quality first, people-oriented", and truly achieved"think what customers think and what customers need urgently". Any questions of axial fan industrial, freely contact us.
As the professional axial fan industrial factory, our monthly production capacity of up to 800000 units. To be the leading axial fan industrial supplier in shenzhen, we adhered to the belief of"customer first, quality first, people-oriented", and truly achieved"think what customers think and what customers need urgently". Any questions of axial fan industrial, freely contact us.
