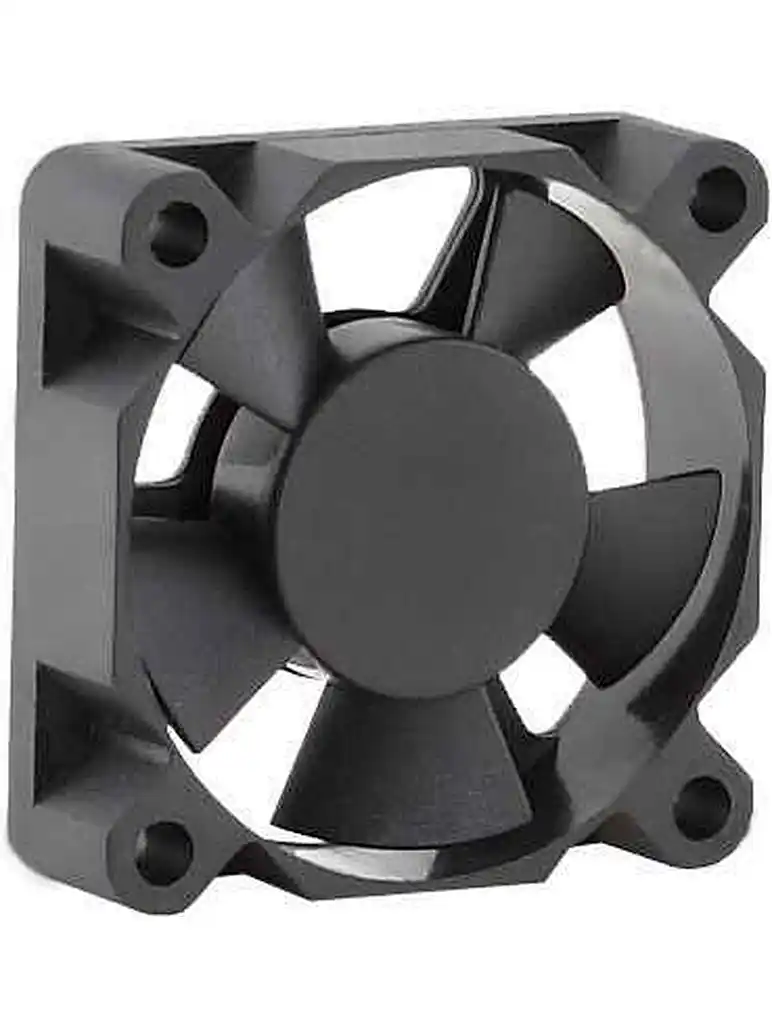

DC Axial Fan 3510
3510
DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
30X30X6 DC Axial-Flow Fan Motor| ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH3510S | Sleeve | 5 | 4.5～5.5 | 0.23 | 9000 | 6.30 | 3.68 | 32.37 | 9 |
| SDM3510S | 0.22 | 7000 | 5.06 | 2.44 | 25.88 | ||||
| SDL3510S | 0.13 | 5000 | 3.51 | 1.28 | 20.26 | ||||
| SDH3510B | Ball | 0.23 | 9000 | 6.30 | 3.68 | 32.37 | |||
| SDM3510B | 0.22 | 7000 | 5.06 | 2.44 | 25.88 | ||||
| SDL3510B | 0.13 | 5000 | 3.51 | 1.28 | 20.26 | ||||
| SDH3510S | Sleeve | 12 | 10.8～13.2 | 0.14 | 9000 | 6.30 | 3.68 | 32.37 | |
| SDM3510S | 0.11 | 7000 | 5.06 | 2.44 | 25.88 | ||||
| SDL3510S | 0.08 | 5000 | 3.51 | 1.28 | 20.26 | ||||
| SDH3510B | Ball | 0.14 | 9000 | 6.30 | 3.68 | 32.37 | |||
| SDM3510B | 0.11 | 7000 | 5.06 | 2.44 | 25.88 | ||||
| SDL3510B | 0.08 | 5000 | 3.51 | 1.28 | 20.26 |
Songlian dc fan produce in shenzhen of China, is one of professional factory.
China dc fan is actually a fan that converts DC power to mechanical energy by inputting DC power to rotate the DC motor to drive the fan impeller to rotate. Its advantages are: longer service life and low failure rate. It can stepless speed regulation, energy saving and low noise. The air volume is large and the safety risk is small.
All kinds of china dc fan and mini fans produced by SL, have the characteristics of"long life", As one of professional china dc fan manufacturer, mini fans in strict accordance with the requirements of ISO-9001 quality management system. At the same time, as a factory of china dc fan, the products have also passed china dc fan CCC, FCC, CE certification. The mini fans meet the ROHS requirements, ensuring that customers can buy"high cost-effective"china dc fan and mini fans.
We are china dc fan suppliers, Welcome to inquire about china dc fan and mini fans, let's start our cooperation.
China dc fan companies have more than 200, our monthly production capacity can reach to 800000 units,"fast delivery"is our advantage.
China dc fan is actually a fan that converts DC power to mechanical energy by inputting DC power to rotate the DC motor to drive the fan impeller to rotate. Its advantages are: longer service life and low failure rate. It can stepless speed regulation, energy saving and low noise. The air volume is large and the safety risk is small.
All kinds of china dc fan and mini fans produced by SL, have the characteristics of"long life", As one of professional china dc fan manufacturer, mini fans in strict accordance with the requirements of ISO-9001 quality management system. At the same time, as a factory of china dc fan, the products have also passed china dc fan CCC, FCC, CE certification. The mini fans meet the ROHS requirements, ensuring that customers can buy"high cost-effective"china dc fan and mini fans.
We are china dc fan suppliers, Welcome to inquire about china dc fan and mini fans, let's start our cooperation.
China dc fan companies have more than 200, our monthly production capacity can reach to 800000 units,"fast delivery"is our advantage.
