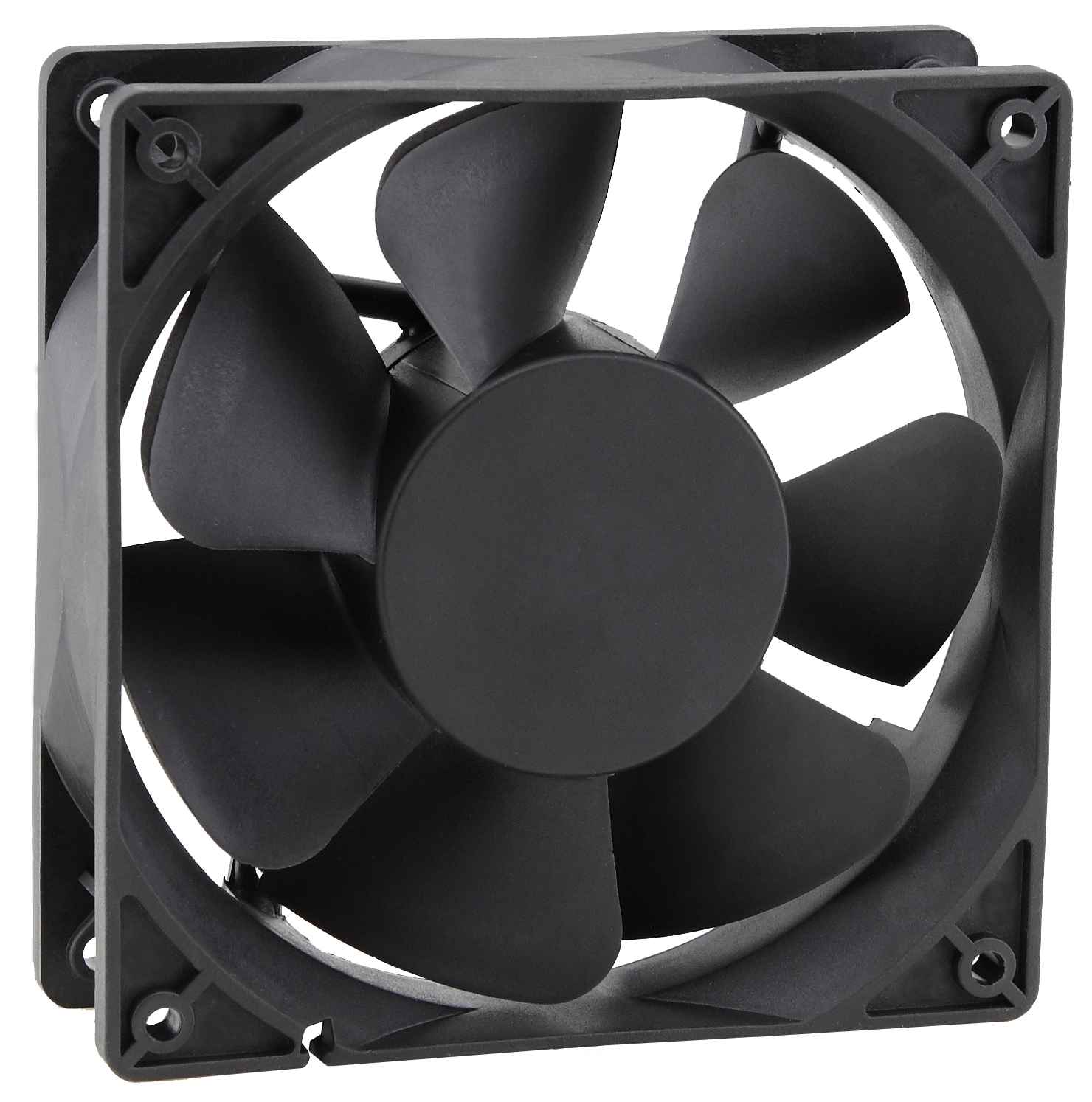

DC Axial Fan 1238
DC -1238
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
120X120X38 DC Axial-Flow Fan Motor| ● General Specifications（一般规格） | ||||||||||||||
| ○ Material: | ||||||||||||||
 | Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||||||
| ○ Lead Wires:UL Type | ||||||||||||||
| RED Wire Positive(+) | ||||||||||||||
| Black Wire Negative(-) | ||||||||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | |||||||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | ||||||||||||||
| ○ Allowable Ambient Temperature Range: | ||||||||||||||
| -10℃～+70℃(Operating) | ||||||||||||||
| -40℃～+70℃(Storage) | ||||||||||||||
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH1238S | Sleeve | 12 | 10.8～13.2 | 0.60 | 3000 | 119.49 | 7.81 | 44.47 | 265 |
| SDM1238S | 0.45 | 2700 | 107.54 | 6.66 | 41.51 | ||||
| SDL1238S | 0.30 | 2400 | 79.66 | 5.26 | 39.98 | ||||
| SDH1238B | Ball | 0.60 | 3000 | 119.49 | 7.81 | 44.47 | |||
| SDM1238B | 0.45 | 2700 | 107.54 | 6.66 | 41.51 | ||||
| SDL1238B | 0.30 | 2400 | 79.66 | 5.26 | 39.98 | ||||
| SDH1238S | Sleeve | 24 | 21.6～26.4 | 0.40 | 3000 | 119.49 | 7.81 | 44.47 | |
| SDM1238S | 0.30 | 2700 | 107.54 | 6.66 | 41.51 | ||||
| SDL1238S | 0.20 | 2400 | 79.66 | 5.26 | 39.98 | ||||
| SDH1238B | Ball | 0.40 | 3000 | 119.49 | 7.81 | 44.47 | |||
| SDM1238B | 0.30 | 2700 | 107.54 | 6.66 | 41.51 | ||||
| SDL1238B | 0.20 | 2400 | 79.66 | 5.26 | 39.98 |
Songlian 120mm dc fan/120mm computer fan are famous for their large air volume and low noise. Songlian is a professional hvls fan manufacturers that specialized in various 120mm dc fan/120mm computer fan for 3V-48V over 8 years. Our main products is brushless fans cover 120mm dc fan、120mm computer fan; We can also produce 120mm dc fan/120mm computer fan with different functions such as automatic start,120mm dc fan/120mm computer fan FG/RD signal output, PWM speed regulation, dustproof and waterproof according to customer requirements 120mm dc fan/120mm computer fan. Also provide OEM/ ODM services 120mm dc fan/120mm computer fan
This cooler 120mm dc fan/120mm computer fan has the lowest power consumption of any of our standard air coolers dc brushless fans, making it compatible with all of our temperature controllers. Labeled wiring cables are provided free of charge when purchasing interconnected standard products (thermoelectric cooling components or modules, temperature controllers and/or power supplies) in the same order. The number of cables included (1-3 pairs) depends on the number of components interconnected. Welcome friends to consult this 120mm dc fan/120mm computer fan.
This cooler 120mm dc fan/120mm computer fan has the lowest power consumption of any of our standard air coolers dc brushless fans, making it compatible with all of our temperature controllers. Labeled wiring cables are provided free of charge when purchasing interconnected standard products (thermoelectric cooling components or modules, temperature controllers and/or power supplies) in the same order. The number of cables included (1-3 pairs) depends on the number of components interconnected. Welcome friends to consult this 120mm dc fan/120mm computer fan.
