DC Blower 2008
2008
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
20X20X8.5 DC Axial-Flow Fan Motor| ● General Specifications（一般规格） | |||||||||||||||||||
| ○ Material: | |||||||||||||||||||
 | Frame And Impeller:Thermal Plastic UL 94-0 | ||||||||||||||||||
| ○ Lead Wires:UL Type | |||||||||||||||||||
| RED Wire Positive(+) | |||||||||||||||||||
| Black Wire Negative(-) | |||||||||||||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||||||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||||||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||||||||||||
| -10℃～+70℃(Operating) | |||||||||||||||||||
| -40℃～+70℃(Storage) |

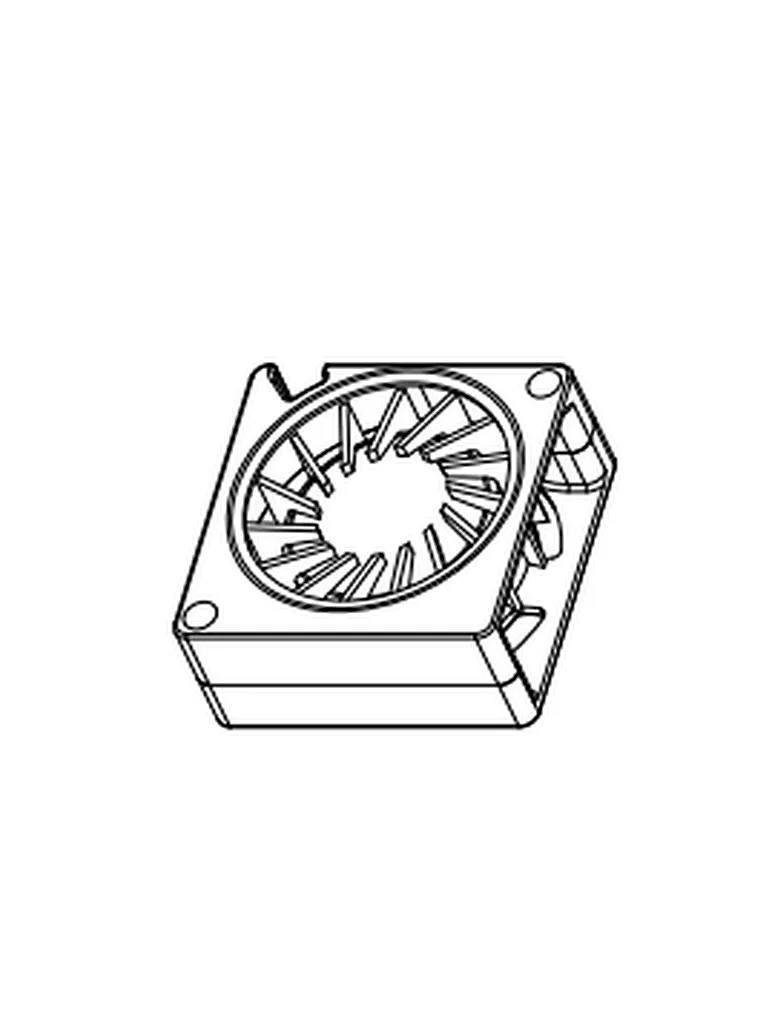

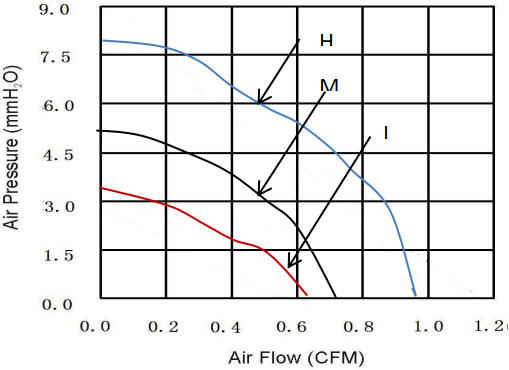

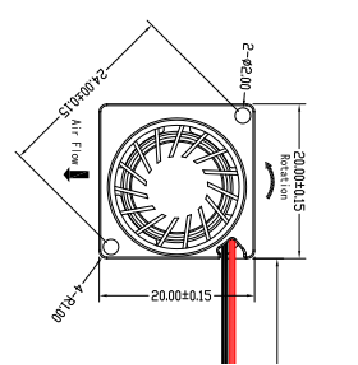

● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH2008S | Sleeve | 5 | 4.5～5.5 | 0.22 | 14000 | 0.98 | 7.84 | 30.10 | 4 |
| SDM2008S | 0.17 | 11000 | 0.77 | 4.84 | 27.76 | ||||
| SDL2008S | 0.12 | 9000 | 0.63 | 3.24 | 23.41 |
As an electronic component, this mini blower fan/micro blower fan is used in telecom/power supply/computer/ IT/office equipment; Mini blower fan/micro blower fan is hot in the recent years, although the price of mini blower fan/micro blower fan is increasing in recent years, the needs of mini blower fan/micro blower fan increasing yearly.
Advantages of DC mini blower fan/micro blower fan: high speed regulation performance and simple control. Compared with the frequency conversion speed regulation of induction motors, the speed regulation control of brushless DC motors is not only simple, but also has better speed regulation performance.
Advantages of DC mini blower fan/micro blower fan: high speed regulation performance and simple control. Compared with the frequency conversion speed regulation of induction motors, the speed regulation control of brushless DC motors is not only simple, but also has better speed regulation performance.
Mini blower fan/micro blower fan: high power factor, because the excitation magnetic field of the brushless DC motor does not require the reactive current of the grid, so mini blower fan/micro blower fan power factor is much higher than that of the induction motor, and the brushless DC motor can operate at a power factor of 1, which is very suitable for small power The motor is extremely beneficial. Compared with induction motors, brushless motors not only have higher efficiency and power factor at rated loads, but also have advantages at light loads.
This mini blower fan/micro blower fan, we can make sleeve and ball bearing per your requirement, the noise of mini blower fan/micro blower fan, we also can make much lower.
