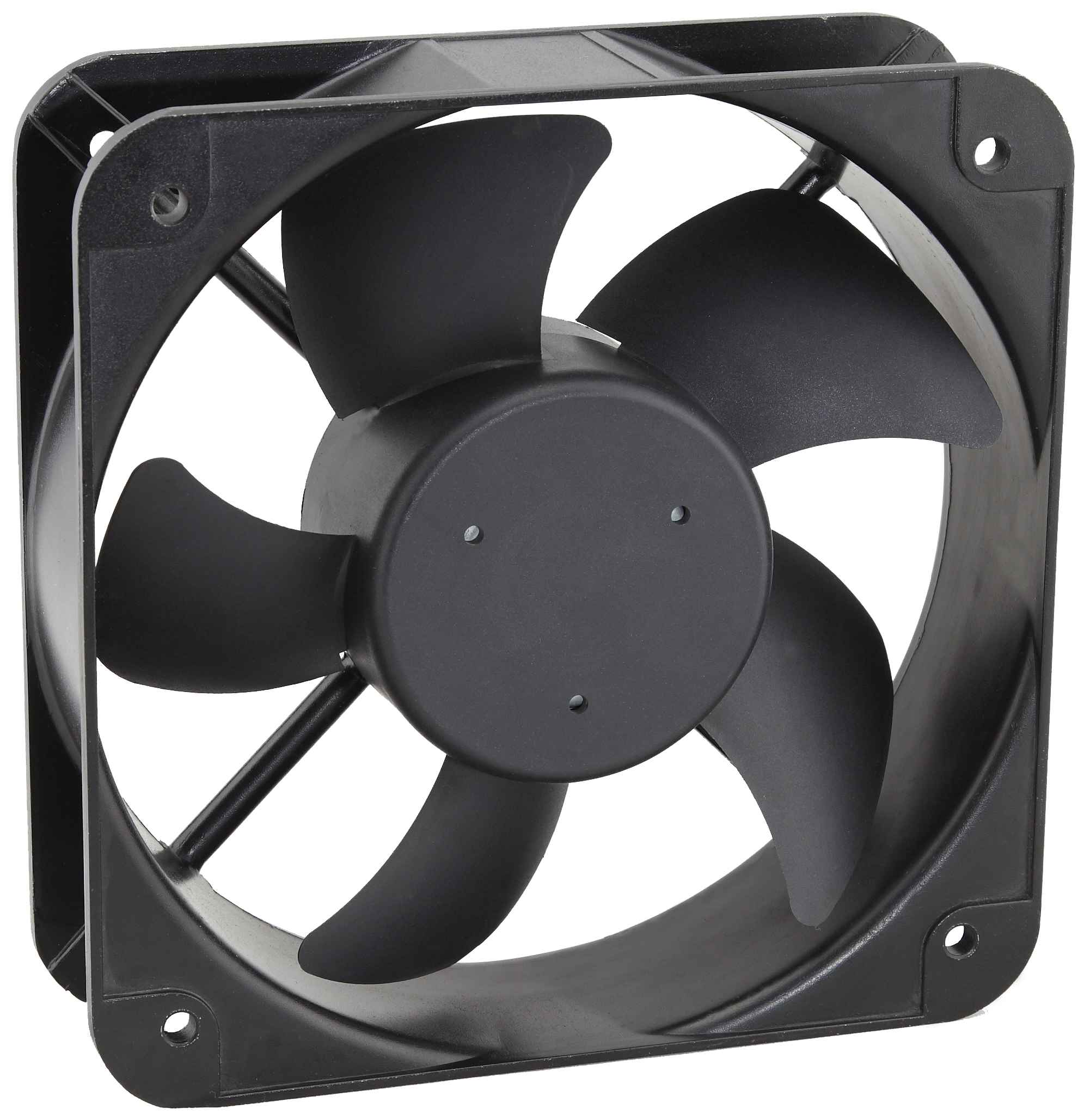

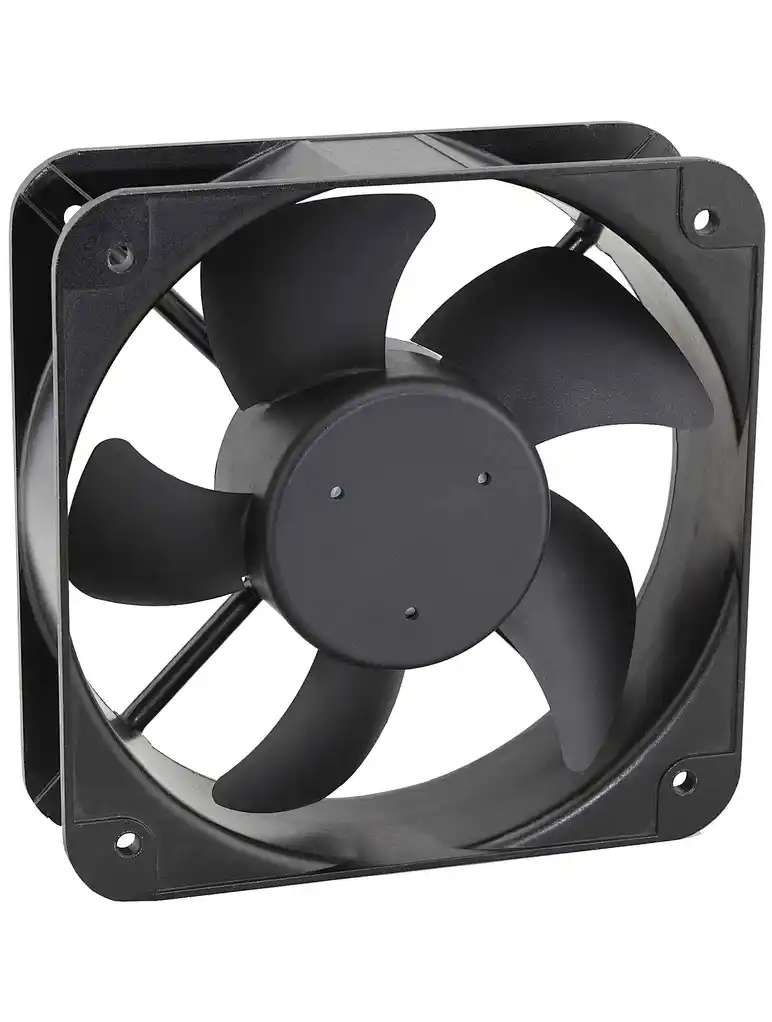

DC Axial Fan DC-20060
DC-20060
DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
200X200X60 DC Axial-Flow Fan Motor| ● General Specifications（一般规格） | ||||||||||||||
| ○ Material: | ||||||||||||||
 | Impeller: PBT UL 94V-0 Reinforced Plastic | |||||||||||||
| Frame :Aluminium Alloy | ||||||||||||||
| ○ Lead Wires:UL Type | ||||||||||||||
| RED Wire Positive(+) | ||||||||||||||
| Black Wire Negative(-) | ||||||||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | |||||||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | ||||||||||||||
| ○ Allowable Ambient Temperature Range: | ||||||||||||||
| -10℃～+70℃(Operating) | ||||||||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDD20060B | Ball | 24 | 21.6～26.4 | 2.00 | 2800 | 595.00 | 65.00 | 74.4 | 1520 |
| SDH20060B | 1.50 | 2500 | 631.00 | 58.20 | 67.0 | ||||
| SDM20060B | 1.00 | 2200 | 467.00 | 51.50 | 55.8 | ||||
| SDL20060B | 0.70 | 2000 | 425.00 | 46.40 | 46.5 | ||||
| SDD20060B | 48 | 43.2～52.8 | 1.10 | 2800 | 595.00 | 65.00 | 74.4 | ||
| SDH20060B | 0.80 | 2500 | 631.00 | 58.20 | 67.0 | ||||
| SDM20060B | 0.60 | 2200 | 467.00 | 51.50 | 55.8 | ||||
| SDL20060B | 0.40 | 2000 | 425.00 | 46.40 | 46.5 |
Our industrial dc fan including 48v dc fan are mainly used for ventilation and heat dissipation of equipment and instruments. The fields involved include 48v dc fan medical equipment (oxygen generators, ventilators), 48v dc fan household appliances (projectors, purifiers), 48v dc fan industrial equipment (power supplies, network communication equipment), automotive electronics, and 48v dc fan new energy industries.
This 48v dc fan. It is powered by 12 VDC, 48v dc fan has different speed level, 48v dc fan and can be customized to reach very high speed or air flow. Like all of our air coolers, it contains expansion blocks between the thermoelectric modules and the cold water tank. These allow the cooler to have unobstructed airflow on the cold side while still allowing up to 25mm thick insulation in the enclosure walls.
This 48v dc fan. It is powered by 12 VDC, 48v dc fan has different speed level, 48v dc fan and can be customized to reach very high speed or air flow. Like all of our air coolers, it contains expansion blocks between the thermoelectric modules and the cold water tank. These allow the cooler to have unobstructed airflow on the cold side while still allowing up to 25mm thick insulation in the enclosure walls.
