DC Axial Fan 2006
2006

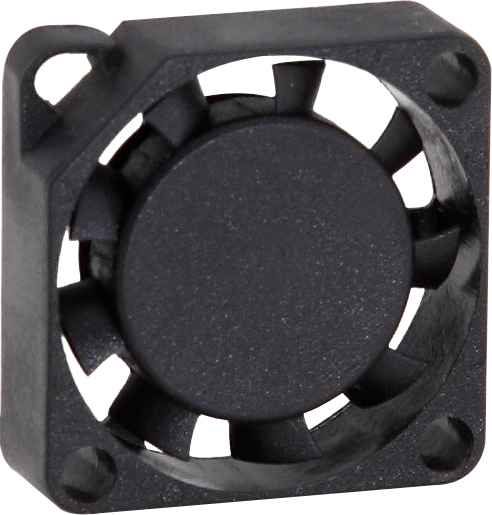

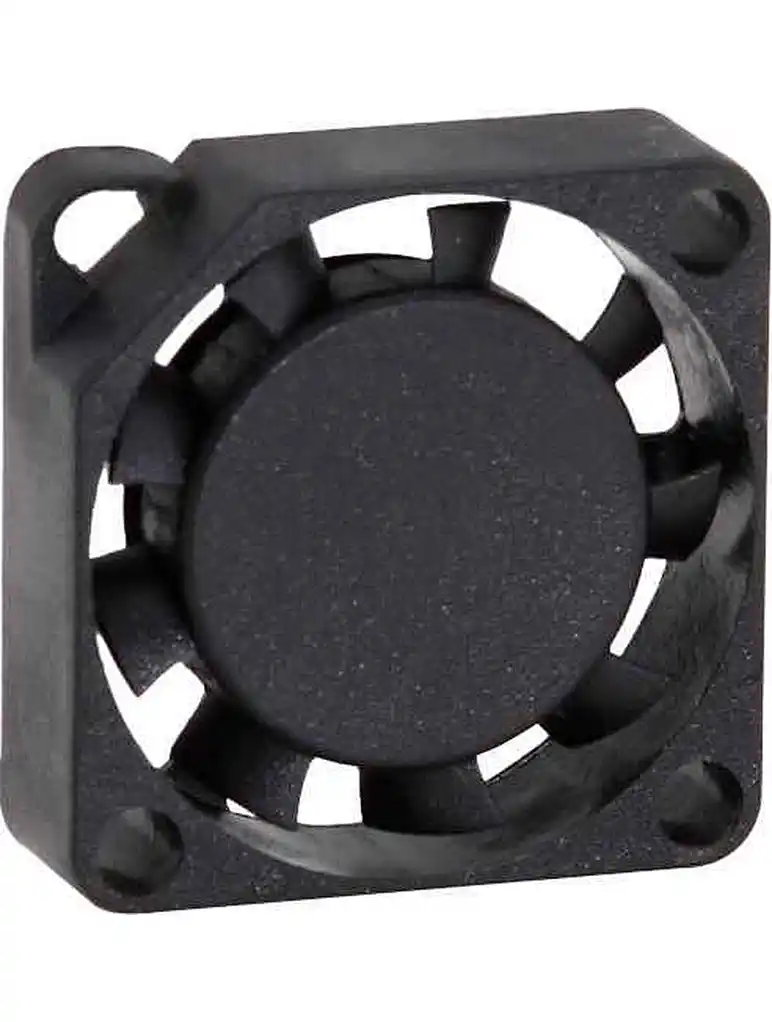

DC Axial-Flow Fan Motor
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
20X20X10 Miniature Fans DC Axial-Flow Fan Motor| ● General Specifications（一般规格） ○ Material: | |||||||||
| Frame And Impeller:Thermal Plastic UL 94-0 | |||||||||
 | ○ Lead Wires:UL Type | ||||||||
| RED Wire Positive(+) | |||||||||
| Black Wire Negative(-) | |||||||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC250V Megger | ||||||||
| ○ Dielectric Withstand Voltage:AC500V 1S | |||||||||
| ○ Allowable Ambient Temperature Range: | |||||||||
| -10℃～+70℃(Operating) | |||||||||
| -40℃～+70℃(Storage) |
● Dimensions Drawing(外观图） ● Characteristic Curves（特性曲线）
● Specifications（规格）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （电压范围） Operation Voltage | （电流） Current | （转数） Speed | （风量） Air Flow | （风压） Static Pressure | (噪音） Noise Level | （重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| SDH2006S | Sleeve | 5 | 4.5～5.5 | 0.22 | 15000 | 1.41 | 5.22 | 33.65 | 4 |
| SDM2006S | 0.17 | 12000 | 1.02 | 3.69 | 26.87 | ||||
| SDL2006S | 0.12 | 9000 | 0.77 | 2.02 | 20.34 |
The miniature fans/mini fan belongs to the dc cooling fan industry. the purpose of miniature fans/mini fan is to dissipate heat for the heat-generating electronic equipment, and the application range is very wide. This miniature fans/mini fan is is mainly used in household electronic equipment or modern commercial mechanical equipment and various electronic products.
Advantages of miniature fans/mini fan: good speed regulation performance and simple control. Compared with the frequency conversion speed regulation of induction motors, the speed regulation control of miniature fans/mini fan brushless DC motors is not only simple, but also has better speed regulation performance.
This miniature fans/mini fan, we can make 5v, 12v, 48v per your requirement, the air flow of miniature fans/mini fan, we also can make much higher.
Advantages of miniature fans/mini fan: good speed regulation performance and simple control. Compared with the frequency conversion speed regulation of induction motors, the speed regulation control of miniature fans/mini fan brushless DC motors is not only simple, but also has better speed regulation performance.
This miniature fans/mini fan, we can make 5v, 12v, 48v per your requirement, the air flow of miniature fans/mini fan, we also can make much higher.
