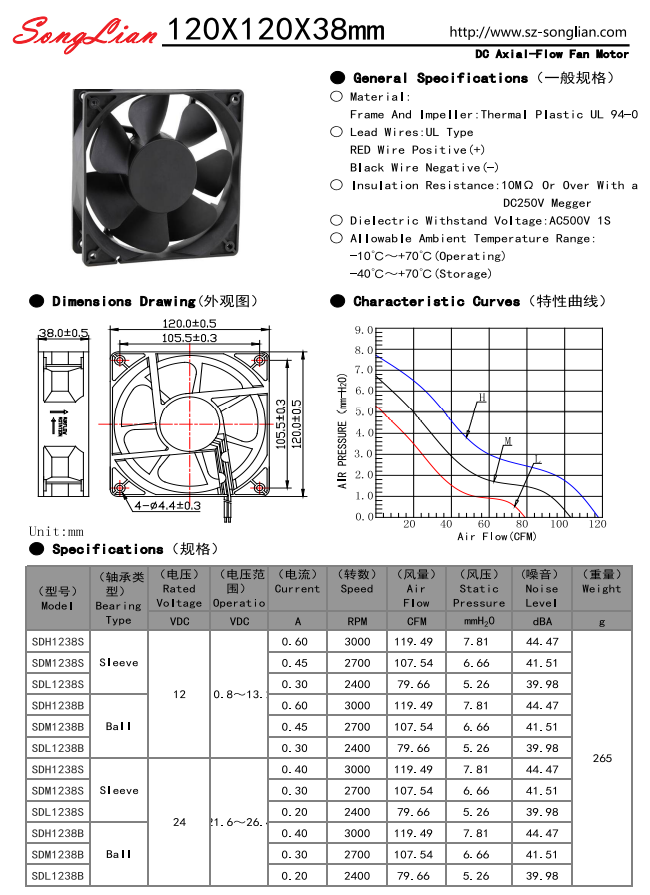

DC Axial Fan 12038
SDH1238S/B
● General Specifications（一般规格）
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a
DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
| Item | 12v dc brushless cooling fan |
| Type | Axial Flow Fan |
| Applicable Industries | Equipment cooling |
| Customized support | OEM |
| Electric Current Type | DC |
| Mounting | FREE STANDING |
| Blade Material | plastic |
| Place of Origin | Guangzhou,China |
| Brand Name | songlian |
| Model Number | DC1238 |
| Certification | CE, RoHS, FCC UL |
| Warranty | 1 Year |
| After-sales Service Provided | Online support |
| durable | simple |
