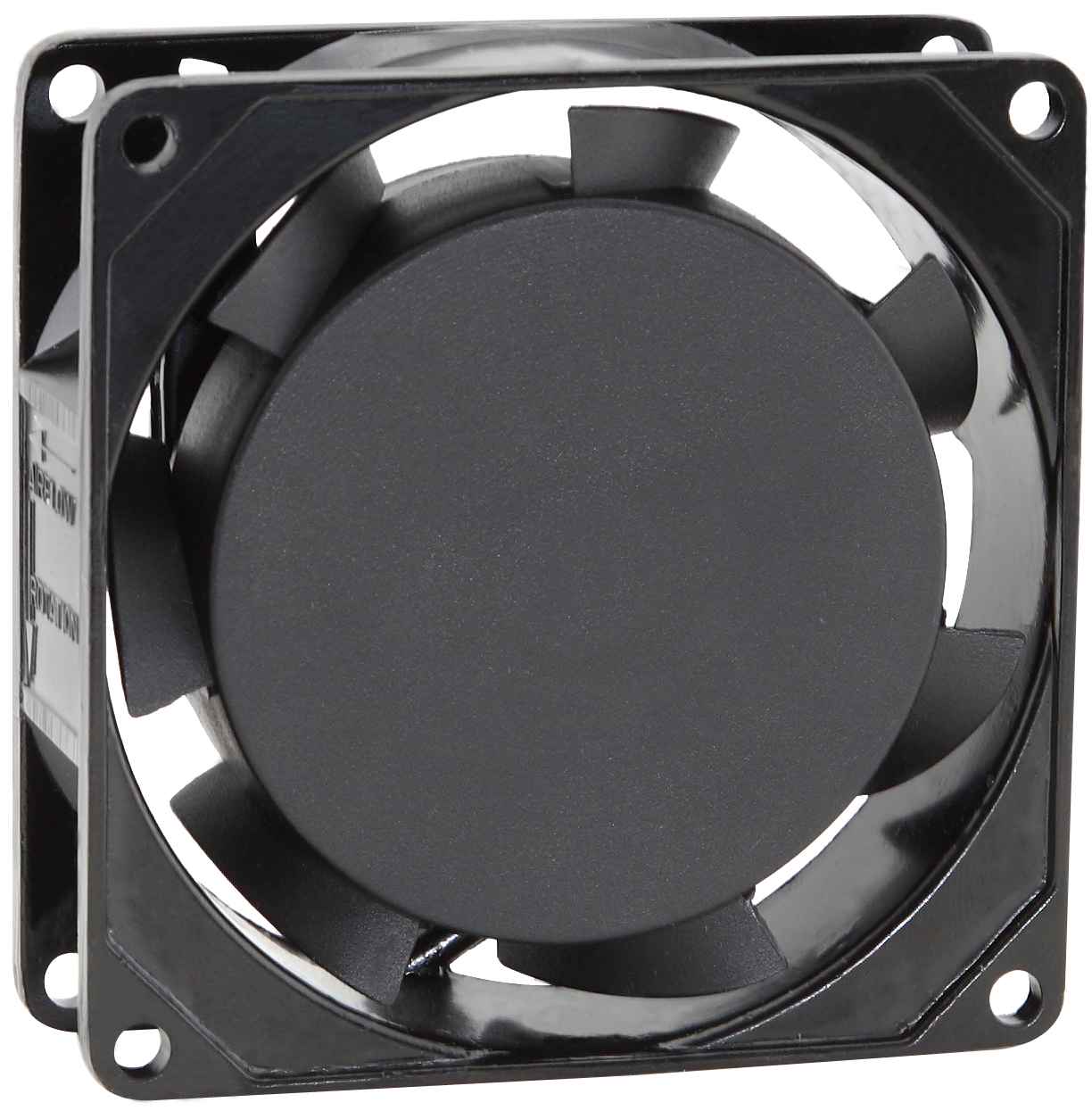

AC Axial Fan AC-1225
AC-1225
● General Specifications（一般规格）
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
120X120X25 AC Axial-Flow Fan Motor/AC Computer Fan
● Dimensions Drawing(外观图）
| ● General Specifications（一般规格） | ||||
| ○ Material: | ||||
| Impeller: PBT UL 94V-0 Reinforced Plastic | ||||
| Frame :Aluminium Alloy | ||||
| ○ Lead Wires: UL Type | ||||
| ○ Motor Protection:ImpeSAnce Protect | ||||
| ○ Insulation Resistance:10MΩ Or Over With a | ||||
| DC500V Megger | ||||
| ○ Dielectric Withstand Voltage:AC1500V 3S | ||||
| ○ Allowable Ambient Temperature Range: | ||||
| -10℃～+70℃(Operating) | ||||
| -40℃～+70℃(Storage) |
● Specifications（规格）
● Characteristic Curves（特性曲线）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （频率） Fre- quency | （电流） Current | (功率） Power | （转数） Speed | (噪音） Noise Level | （风量） Air Flow | （风压） Static Pressure | （重量） Weight | |
| VDC | Hz | A | W | RPM | dBA | M3/hr | CFM | mmH20 | g | ||
| SAH1225S | Sleeve | 220-240 | 50/60 | 0.07 | 14/13 | 2150/2450 | 34/39 | 100/115 | 59/68 | 4.0/4.3 | 370 |
| SAM1225S | 220-240 | 50/60 | 0.06 | 11/10 | 2000/2200 | 33/34 | 94/102 | 55/60 | 3.0/3.7 | ||
| SAL1225S | 220-240 | 50/60 | 0.05 | 9/8 | 1800/1800 | 31/31 | 85/85 | 50/50 | 2.2/2.2 | ||
| SAH1225S | 100-125 | 50/60 | 0.17 | 14/13 | 2150/2450 | 34/39 | 100/115 | 59/68 | 4.0/4.3 | ||
| SAM1225S | 100-125 | 50/60 | 0.13 | 11/10 | 2000/2200 | 33/34 | 94/102 | 55/60 | 3.0/3.7 | ||
| SAL1225S | 100-125 | 50/60 | 0.09 | 9/8 | 1800/1800 | 31/31 | 85/85 | 50/50 | 2.2/2.2 | ||
| SAH1225B | Ball | 220-240 | 50/60 | 0.07 | 14/13 | 2150/2450 | 34/39 | 100/115 | 59/68 | 4.0/4.3 | |
| SAM1225B | 220-240 | 50/60 | 0.06 | 11/10 | 2000/2200 | 33/34 | 94/102 | 55/60 | 3.0/3.7 | ||
| SAL1225B | 220-240 | 50/60 | 0.05 | 9/8 | 1800/1800 | 31/31 | 85/85 | 50/50 | 2.2/2.2 | ||
| SAH1225B | 100-125 | 50/60 | 0.17 | 14/13 | 2150/2450 | 34/39 | 100/115 | 59/68 | 4.0/4.3 | ||
| SAM1225B | 100-125 | 50/60 | 0.13 | 11/10 | 2000/2200 | 33/34 | 94/102 | 55/60 | 3.0/3.7 | ||
| SAL1225B | 100-125 | 50/60 | 0.09 | 9/8 | 1800/1800 | 31/31 | 85/85 | 50/50 | 2.2/2.2 | ||
| Notes: Specifications Subject To Change Without Notice | |||||||||||
● Characteristic Curves（特性曲线）
Our industrial fan 120mm 220v/ac computer fan/120mm computer fan are mainly used for ventilation and heat dissipation of equipment and instruments. The fields involved include fan 120mm 220v/ac computer fan/120mm computer fan medical equipment (oxygen generators, ventilators), ac computer fan household appliances (computer, projectors, purifiers), fan 120mm 220v/ac computer fan/120mm computer fan industrial equipment (power supplies, network communication equipment), automotive electronics, and fan 120mm 220v/ac computer fan/120mm computer fan new energy industries.
This fan 120mm 220v/ac computer fan/120mm computer fan. with high power, long life, adjustable speed.
The size of fan 120mm 220v/ac computer fan/120mm computer fan are 120mm, this 120mm is very hot.
This fan 120mm 220v/ac computer fan/120mm computer fan. with high power, long life, adjustable speed.
The size of fan 120mm 220v/ac computer fan/120mm computer fan are 120mm, this 120mm is very hot.
