AC Axial Fan/ AC-9225
AC-9225
● General Specifications（一般规格）
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity

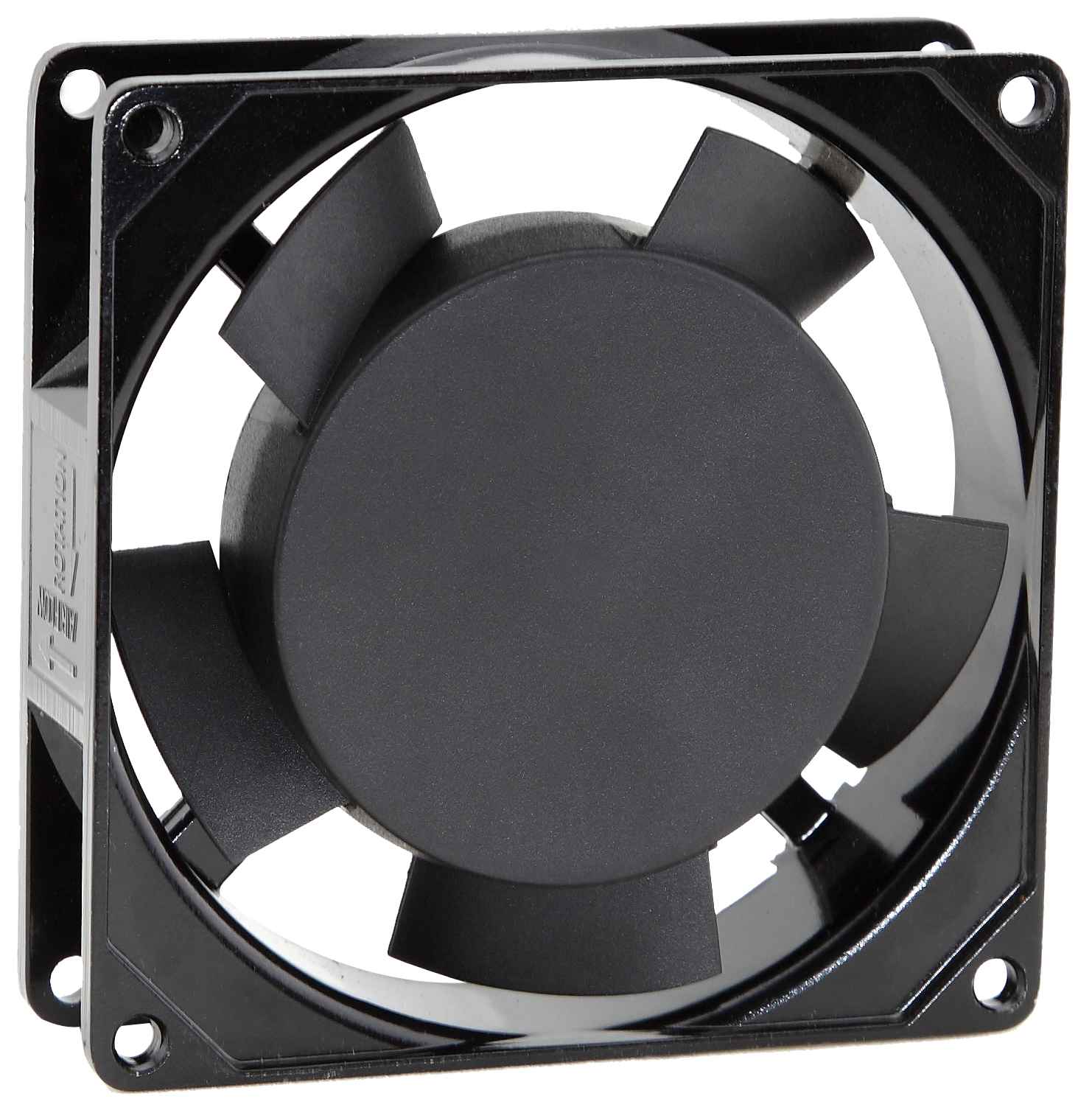

92X92X25 AC 9225 AC Axial-Flow Fan Motor
● Dimensions Drawing(外观图）
| ● General Specifications（一般规格） | |||||
| ○ Material: | |||||
| Impeller: PBT UL 94V-0 Reinforced Plastic | |||||
| Frame :Aluminium Alloy | |||||
| ○ Lead Wires: UL Type | |||||
| ○ Motor Protection:ImpeSAnce Protect | |||||
| ○ Insulation Resistance:10MΩ Or Over With a | |||||
| DC500V Megger | |||||
| ○ Dielectric Withstand Voltage:AC1500V 3S | |||||
| ○ Allowable Ambient Temperature Range: | |||||
| -10℃～+70℃(Operating) | |||||
| -40℃～+70℃(Storage) |
● Specifications（规格）
● Characteristic Curves（特性曲线）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （频率） Fre- quency | （电流） Current | (功率） Power | （转数） Speed | (噪音） Noise Level | （风量） Air Flow | （风压） Static Pressure | （重量） Weight | |
| VDC | Hz | A | W | RPM | dBA | M3/hr | CFM | mmH20 | g | ||
| SAH9225S | Sleeve | 220-240 | 50/60 | 0.10 | 13/11 | 1300/1700 | 20/23 | 33/43 | 20/26 | 1.0/1.6 | 240 |
| SAH9225S | 100-125 | 50/60 | 0.13 | 13/11 | 1300/1700 | 20/23 | 33/43 | 20/26 | 1.0/1.6 | ||
| SAH9225B | Ball | 220-240 | 50/60 | 0.10 | 13/11 | 1400/1900 | 22/26 | 37/50 | 22/30 | 1.2/1.9 | |
| SAH9225B | 100-125 | 50/60 | 0.13 | 13/11 | 1400/1900 | 22/26 | 37/50 | 22/30 | 1.2/1.9 | ||
| Notes: Specifications Subject To Change Without Notice | |||||||||||
● Characteristic Curves（特性曲线）
AC Axial fan input alternating current, The color of the AC Axial fan power cord is the same regardless of the positive and negative, so ac axial fan is convenient to power on, and it is unnecessary to pay attention to which line is connected to which interface.Songlian AC Axial fan including ac 9225、ac12025、ac12038、ac17051、ac22060 are famous for their good quality stability, long service life with large air volume and low noise.
The AC Axial fan belongs to the cooling fan industry. AC Axial fan is to dissipate heat for the heat-generating electronic equipment, and the application range is very wide. This AC axial cooling fan is used in household appliances such as refrigerators, freezers, and air conditioners that we use in our daily lives; As an electronic component, the ac 9225 fan is mainly used in household electronic equipment or modern commercial mechanical equipment, and the ac 9225 is used to various electronic products too. The ac 9225 fan advantage is that it can display a continuous and stable exhaust air volume, which helps various mechanical equipment to reduce over-temperature or inefficiency caused by inconsistent temperature rise throughout the application process.
