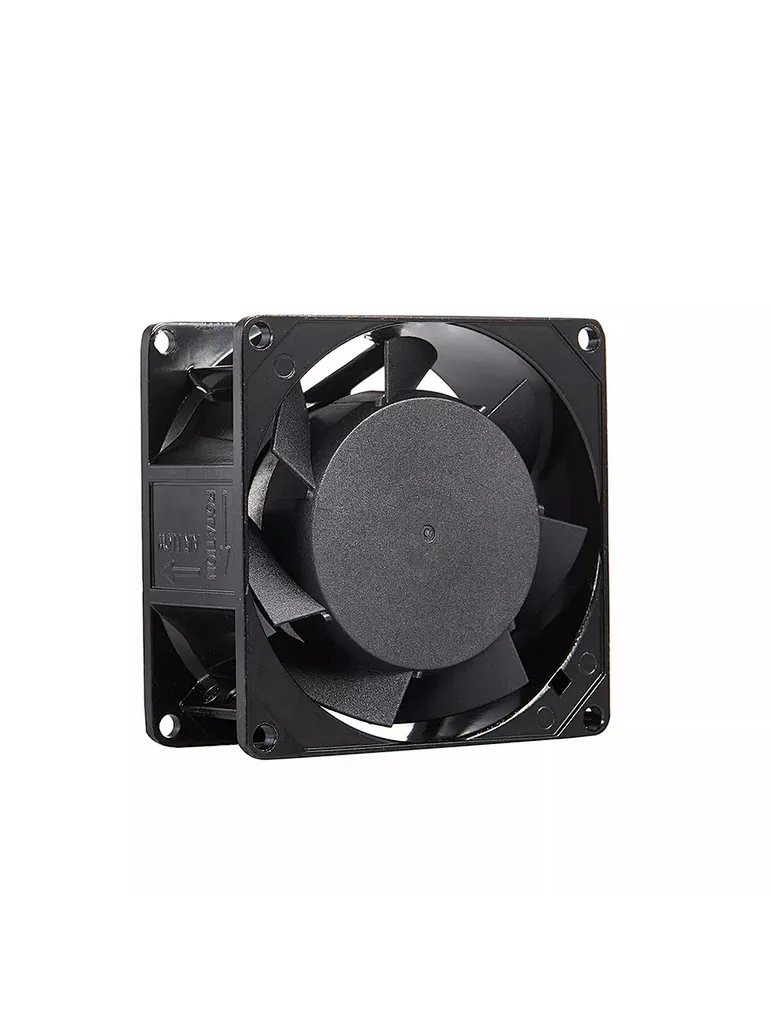

AC Axial Fan AC-8038
AC-8038
● General Specifications（一般规格）
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity

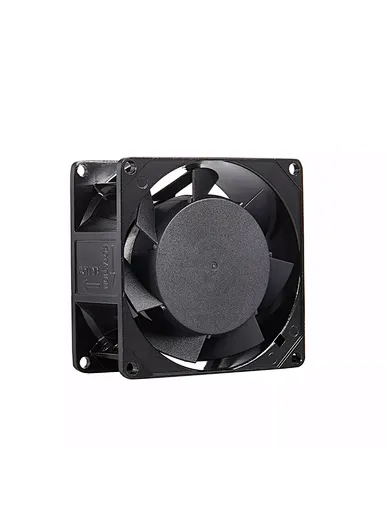

80X80X38 AC Axial-Flow Fan Motor
● Dimensions Drawing(外观图）
| ● General Specifications（一般规格） | ||||
| ○ Material: | ||||
| Impeller: PBT UL 94V-0 Reinforced Plastic | ||||
| Frame :Aluminium Alloy | ||||
| ○ Lead Wires: UL Type | ||||
| ○ Motor Protection:ImpeSAnce Protect | ||||
| ○ Insulation Resistance:10MΩ Or Over With a | ||||
| DC500V Megger | ||||
| ○ Dielectric Withstand Voltage:AC1500V 3S | ||||
| ○ Allowable Ambient Temperature Range: | ||||
| -10℃～+70℃(Operating) | ||||
| -40℃～+70℃(Storage) |
● Specifications（规格）
● Characteristic Curves（特性曲线）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （频率） Fre- quency | （电流） Current | (功率） Power | （转数） Speed | (噪音） Noise Level | （风量） Air Flow | （风压） Static Pressure | （重量） Weight | |
| VDC | Hz | A | W | RPM | dBA | M3/hr | CFM | mmH20 | g | ||
| SAH8038S | Sleeve | 220-240 | 50/60 | 0.08 | 14/10 | 2400/2900 | 27/32 | 39/48 | 23/28 | 2.9/4.5 | 340 |
| SAM8038S | 220-240 | 50/60 | 0.06 | 7/6 | 2300/2700 | 26/30 | 36/44 | 21/26 | 2.7/4.2 | ||
| SAH8038S | 100-125 | 50/60 | 0.20 | 16/12 | 2400/2900 | 27/32 | 39/48 | 23/28 | 2.9/4.5 | ||
| SAM8038S | 100-125 | 50/60 | 0.10 | 9/7 | 2300/2700 | 26/30 | 36/44 | 21/26 | 2.7/4.2 | ||
| SAH8038B | Ball | 220-240 | 50/60 | 0.08 | 14/10 | 2700/3000 | 28/34 | 44/49 | 26/29 | 3.7/5.0 | |
| SAM8038B | 220-240 | 50/60 | 0.06 | 7/6 | 2300/2700 | 26/30 | 37/44 | 22/26 | 2.8/4.5 | ||
| SAH8038B | 100-125 | 50/60 | 0.20 | 16/12 | 2700/3000 | 28/34 | 44/49 | 26/29 | 3.7/5.0 | ||
| SAM8038B | 100-125 | 50/60 | 0.10 | 9/7 | 2300/2700 | 26/30 | 37/44 | 22/26 | 2.8/4.5 | ||
| Notes: Specifications Subject To Change Without Notice | |||||||||||
● Characteristic Curves（特性曲线）
