AC Axial Fan AC-22060
AC-22060
● General Specifications（一般规格）
○ Material:
Impeller: PA6 UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Impeller: PA6 UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity

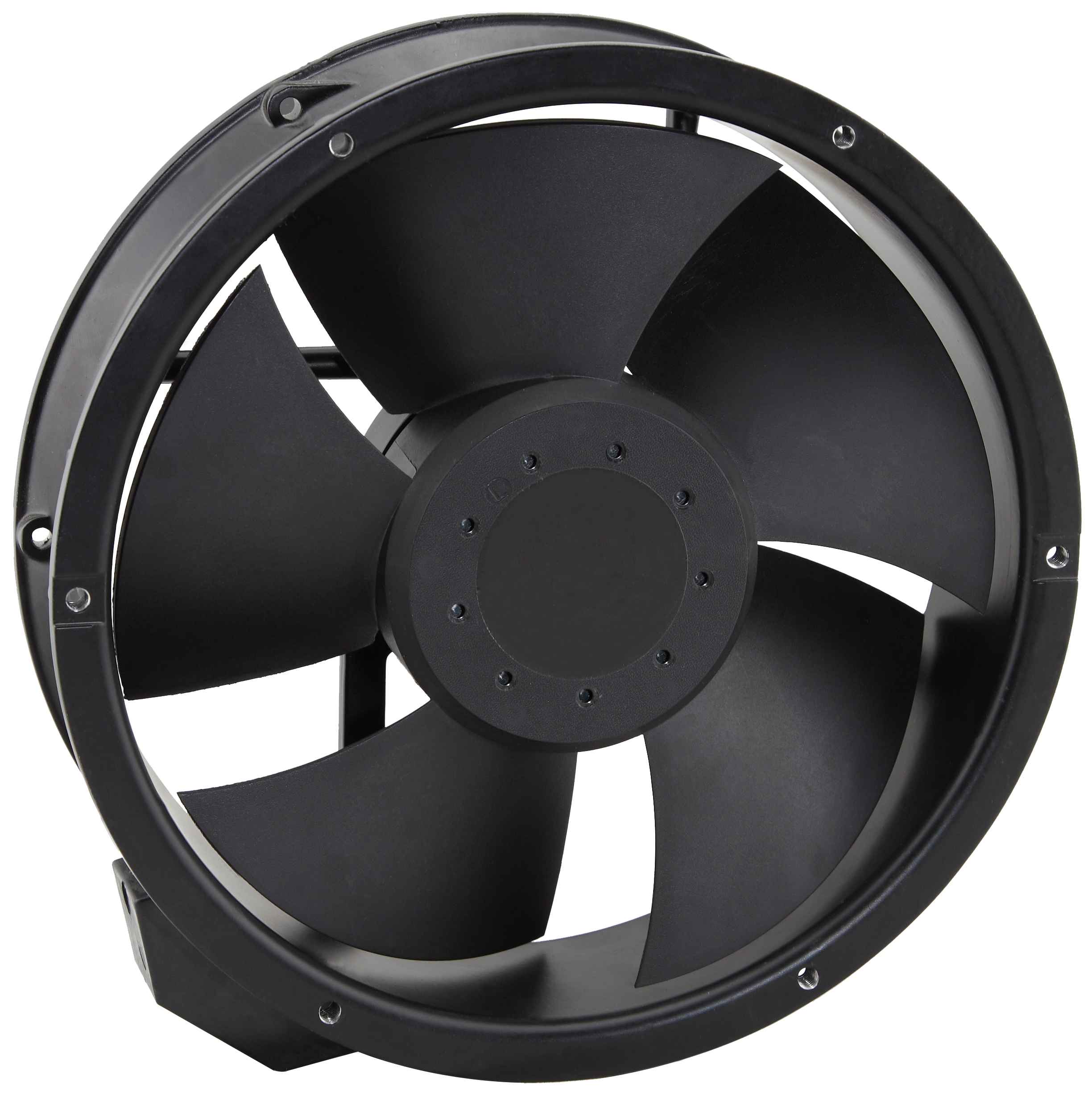

220X220X60 AC Brushless Fan AC Axial-Flow Fan Motor
● Dimensions Drawing(外观图）
| ● General Specifications（一般规格） | |||||
| ○ Material: | |||||
| Impeller: PA6 UL 94V-0 Reinforced Plastic | |||||
| Frame :Aluminium Alloy | |||||
| ○ Lead Wires: UL Type | |||||
| ○ Motor Protection:ImpeSAnce Protect | |||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC500V Megger | ||||
| ○ Dielectric Withstand Voltage:AC1500V 3S | |||||
| ○ Allowable Ambient Temperature Range: | |||||
| -10℃～+70℃(Operating) | |||||
| -40℃～+70℃(Storage) |
● Specifications（规格）
● Characteristic Curves（特性曲线）
The ac brushless fan has a fixed power frequency, so the changing speed of the magnetic pole generated by the silicon steel sheet is determined by the power frequency. Same. Because of its excellent quality, stable performance and complete product specifications, AC brushless fan are widely used in a wide range of applications, such as auto parts, household appliances, office equipment, ventilation systems, machinery and equipment, communication equipment, aerospace industry and so on.
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （频率） Fre- quency | （电流） Current | (功率） Power | （转数） Speed | (噪音） Noise Level | （风量） Air Flow | （风压） Static Pressure | （重量） Weight | |
| VDC | Hz | A | W | RPM | dBA | M3/hr | CFM | mmH20 | g | ||
| SAH2260B | Ball | 220-240 | 50/60 | 0.25/0.26 | 50/60 | 2800/3200 | 59/62 | 730/824 | 430/485 | 24/18 | 1540 |
| SAH2260B | 100-125 | 50/60 | 0.42/0.46 | 50/56 | 2800/3200 | 59/62 | 730/824 | 430/485 | 24/18 | ||
| Notes: Specifications Subject To Change Without Notice | |||||||||||
● Characteristic Curves（特性曲线）
The ac brushless fan has a fixed power frequency, so the changing speed of the magnetic pole generated by the silicon steel sheet is determined by the power frequency. Same. Because of its excellent quality, stable performance and complete product specifications, AC brushless fan are widely used in a wide range of applications, such as auto parts, household appliances, office equipment, ventilation systems, machinery and equipment, communication equipment, aerospace industry and so on.
/5
