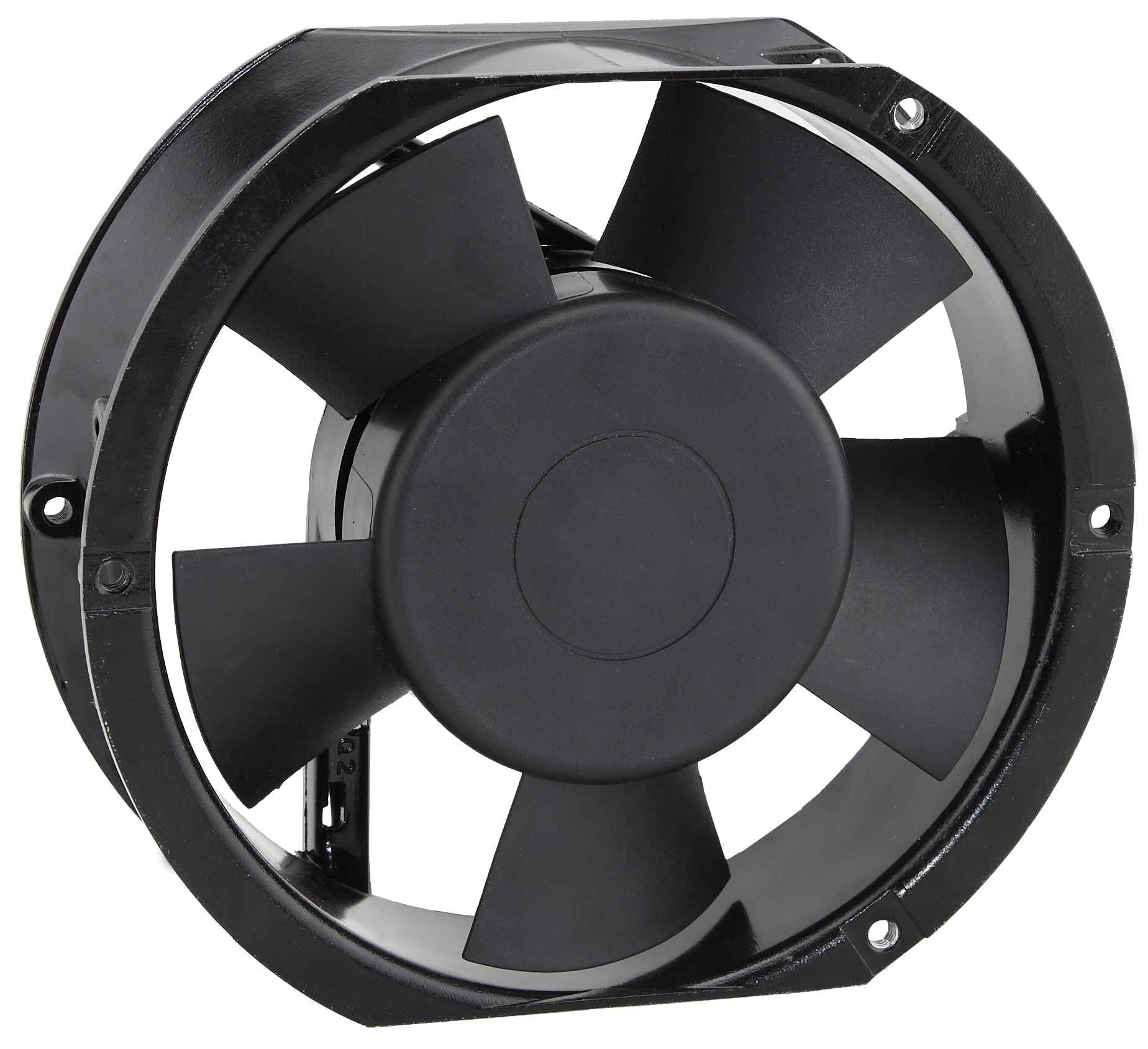

AC Axial Fan AC-17051
AC-17051
● General Specifications（一般规格）
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
170X170X51 AC Axial-Flow Fan Motor
● Dimensions Drawing(外观图）
| ● General Specifications（一般规格） | |||||
| ○ Material: | |||||
| Impeller: PBT UL 94V-0 Reinforced Plastic | |||||
| Frame :Aluminium Alloy | |||||
| ○ Lead Wires: UL Type | |||||
| ○ Motor Protection:ImpeSAnce Protect | |||||
| ○ Insulation Resistance:10MΩ Or Over With a | DC500V Megger | ||||
| ○ Dielectric Withstand Voltage:AC1500V 3S | |||||
| ○ Allowable Ambient Temperature Range: | |||||
| -10℃～+70℃(Operating) | |||||
| -40℃～+70℃(Storage) | |||||
● Specifications（规格）
● Characteristic Curves（特性曲线）
The aluminum fan include 240v axial fan has the advantages of high power, long life, adjustable speed, and the voltage is in the range of 100-240V. It has the advantages of large air volume, stable performance and fast speed. In many industries such as medical devices, it is used.
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （频率） Fre- quency | （电流） Current | (功率） Power | （转数） Speed | (噪音） Noise Level | （风量） Air Flow | （风压） Static Pressure | （重量） Weight | |
| VDC | Hz | A | W | RPM | dBA | M3/hr | CFM | mmH20 | g | ||
| SAH1751S | Sleeve | 220-240 | 50/60 | 0.40 | 47/41 | 2700/3000 | 51/55 | 272/306 | 160/180 | 11.3/13 | 880 |
| SAM1751S | 220-240 | 50/60 | 0.30 | 28/27 | 2500/2700 | 49/51 | 252/272 | 148/160 | 9.9/7.0 | ||
| SAL1751S | 220-240 | 50/60 | 0.20 | 20/20 | 2200/2400 | 45/47 | 233/240 | 137/141 | 3.4/4.6 | ||
| SAH1751S | 100-125 | 50/60 | 0.60 | 47/41 | 2700/3000 | 51/55 | 272/306 | 160/180 | 11.3/13 | ||
| SAM1751S | 100-125 | 50/60 | 0.50 | 28/27 | 2500/2700 | 49/51 | 252/272 | 148/160 | 9.9/7.0 | ||
| SAL1751S | 100-125 | 50/60 | 0.40 | 20/20 | 2000/2400 | 45/47 | 233/240 | 137/141 | 3.4/4.6 | ||
| SAH1751B | Ball | 220-240 | 50/60 | 0.40 | 47/41 | 2700/3000 | 51/55 | 272/306 | 160/180 | 11.3/13 | |
| SAM1751B | 220-240 | 50/60 | 0.30 | 28/27 | 2500/2700 | 49/51 | 252/272 | 148/160 | 9.9/7.0 | ||
| SAL1751B | 220-240 | 50/60 | 0.20 | 20/20 | 2200/2400 | 45/47 | 233/240 | 137/141 | 3.4/4.6 | ||
| SAH1751B | 100-125 | 50/60 | 0.60 | 47/41 | 2700/3000 | 51/55 | 272/306 | 160/180 | 11.3/13 | ||
| SAM1751B | 100-125 | 50/60 | 0.50 | 28/27 | 2500/2700 | 49/51 | 252/272 | 148/160 | 9.9/7.0 | ||
| SAL1751B | 100-125 | 50/60 | 0.40 | 20/20 | 2000/2400 | 45/47 | 233/240 | 137/141 | 3.4/4.6 | ||
| Notes: Specifications Subject To Change Without Notice | |||||||||||
● Characteristic Curves（特性曲线）
The frame of aluminum fan is aluminium alloy; Compare to plastic fan, high temperature resistance of aluminum fan is difference. usually, aluminum fan is ac axial fan, the voltage from 110v to 240v. There is not much demand for 240v axial fan, very few applications designed 240v axial fan or higher voltage axial fan.
The aluminum fan include 240v axial fan has the advantages of high power, long life, adjustable speed, and the voltage is in the range of 100-240V. It has the advantages of large air volume, stable performance and fast speed. In many industries such as medical devices, it is used.
