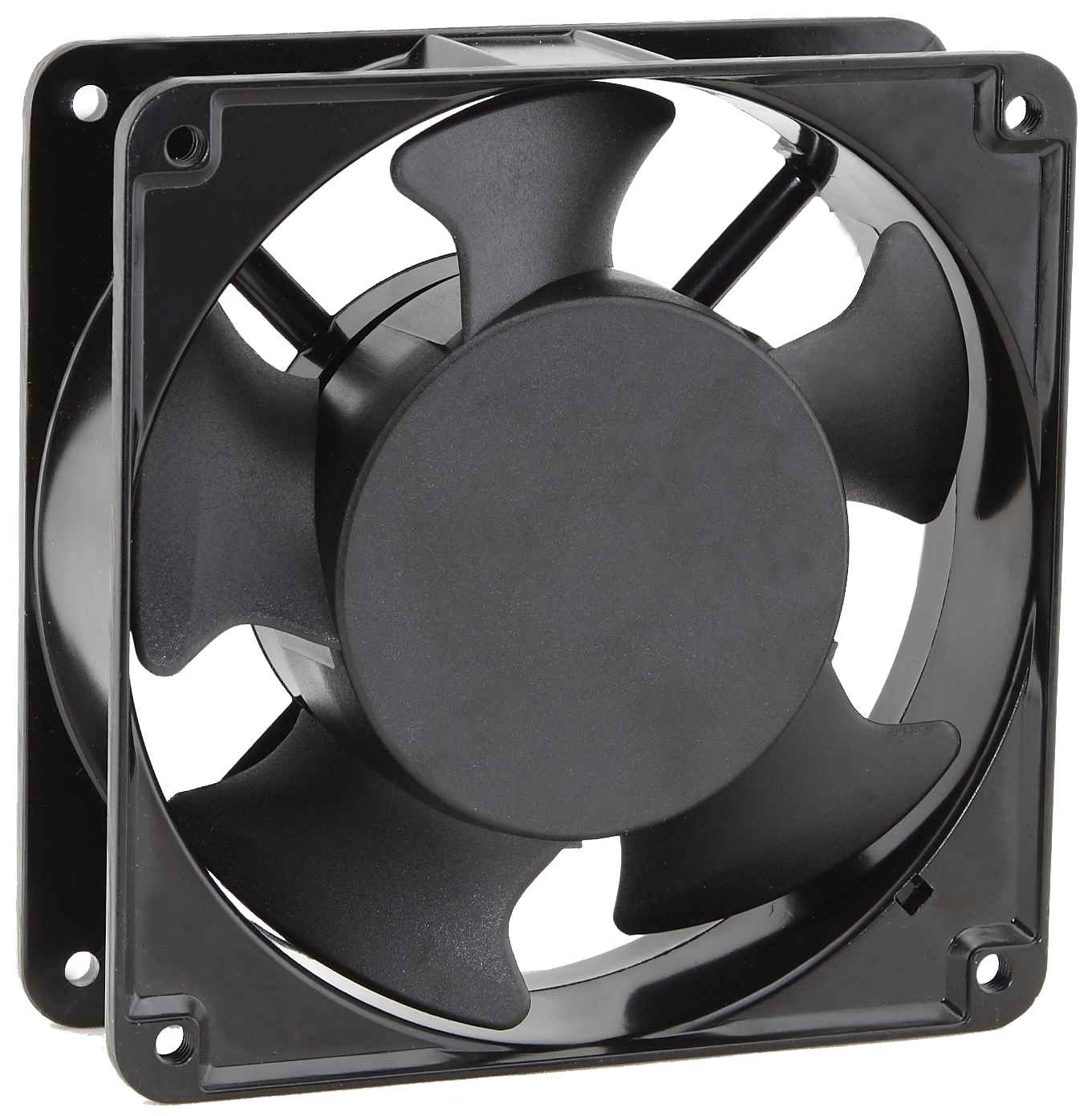

AC Axial Fan AC-1238
AC-1238
● General Specifications（一般规格）
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Quantity
120X120X38 ip68 fan AC Axial-Flow Fan Motor
● Dimensions Drawing(外观图）
| ● General Specifications（一般规格） |
| ○ Material: |
| Impeller: PBT UL 94V-0 Reinforced Plastic |
| Frame :Aluminium Alloy |
| ○ Lead Wires: UL Type |
| ○ Motor Protection:ImpeSAnce Protect |
| ○ Insulation Resistance:10MΩ Or Over With a DC500V Megger |
| ○ Dielectric Withstand Voltage:AC1500V 3S |
| ○ Allowable Ambient Temperature Range: |
| -10℃～+70℃(Operating) |
| -40℃～+70℃(Storage) |
● Specifications（规格）
● Characteristic Curves（特性曲线）
| （型号） Model | （轴承类型） Bearing Type | （电压） Rated Voltage | （频率） Fre- quency | （电流） Current | (功率） Power | （转数） Speed | (噪音） Noise Level | （风量） Air Flow | （风压） Static Pressure | （重量） Weight | |
| VDC | Hz | A | W | RPM | dBA | M3/hr | CFM | mmH20 | g | ||
| SAH1238S | Sleeve | 220-240 | 50/60 | 0.20 | 23/20 | 2600/3000 | 42/44 | 134/160 | 79/94 | 6.8/8.8 | 450 |
| SAM1238S | 220-240 | 50/60 | 0.16 | 15/14 | 2400/2700 | 40/43 | 127/141 | 75/83 | 5.2/6.5 | ||
| SAL1238S | 220-240 | 50/60 | 0.10 | 10/9 | 2000/2400 | 36/40 | 104/127 | 61/75 | 2.8/4.2 | ||
| SAH1238S | 100-125 | 50/60 | 0.30 | 23/20 | 2600/3000 | 42/44 | 134/160 | 79/74 | 6.8/8.8 | ||
| SAM1238S | 100-125 | 50/60 | 0.25 | 15/14 | 2400/2700 | 40/43 | 127/141 | 75/83 | 5.2/6.5 | ||
| SAL1238S | 100-125 | 50/60 | 0.20 | 10/9 | 2000/2400 | 36/40 | 104/127 | 61/75 | 2.8/4.2 | ||
| SAH1238B | Ball | 220-240 | 50/60 | 0.20 | 23/20 | 2600/3000 | 42/44 | 134/160 | 79/94 | 6.8/8.8 | |
| SAM1238B | 220-240 | 50/60 | 0.16 | 15/14 | 2400/2700 | 40/43 | 127/141 | 75/83 | 5.2/6.5 | ||
| SAL1238B | 220-240 | 50/60 | 0.10 | 10/9 | 2000/2400 | 36/40 | 104/127 | 61/75 | 2.8/4.2 | ||
| SAH1238B | 100-125 | 50/60 | 0.30 | 23/20 | 2600/3000 | 42/44 | 134/160 | 79/74 | 6.8/8.8 | ||
| SAM1238B | 100-125 | 50/60 | 0.25 | 15/14 | 2400/2700 | 40/43 | 127/141 | 75/83 | 5.2/6.5 | ||
| SAL1238B | 100-125 | 50/60 | 0.20 | 10/9 | 2000/2400 | 36/40 | 104/127 | 61/75 | 2.8/4.2 | ||
| Notes: Specifications Subject To Change Without Notice | |||||||||||
● Characteristic Curves（特性曲线）
Songlian4 inch ac fan、ip68 fan are famous for their long life. Songlian is a professional manufacturer that specialized in various 1- 4 inch ac fan(dc fan) for 3V-380V over 8 years. Our main products include 4 inch ac fan、 ip68 fan and High pressure blower with ( 12V/24V/48V)ip68 fan; We can also produce fans with different functions such as automatic start ip68 fan, FG/RD signal output ip68 fan, PWM speed regulation, dustproof and waterproof according to customer requirements ip68 fan. Also provide OEM/ ODM services ip68 fan.
